VI20120SG-E3 - High Voltage Trench MOS Barrier Schottky Rectifier

Name: VI20120SG-E3
SKU: VI20120SG-E3-1431454

Vishay

The VI20120SG-E3 by Vishay is a High Voltage Trench MOS Barrier Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	VI20120SG-E3
Manufacturer	Vishay
File Size	213.68 KB
Description	High Voltage Trench MOS Barrier Schottky Rectifier
Datasheet	VI20120SG-E3-Vishay.pdf

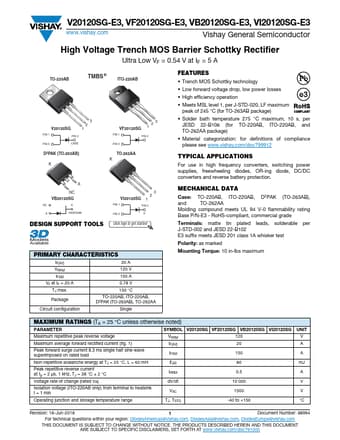

Additional preview pages of the VI20120SG-E3 datasheet.

Trench MOS Schottky technology.
Low forward voltage drop, low power losses.
High efficiency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB, ITO-220AB, and TO-262AA package).
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
