VEMT3700F - Silicon NPN Phototransisto

Description

VEMT3700F is a high speed silicon NPN epitaxial planar phototransistor in a miniature PLCC-2 package.

The integrated daylight blocking filter is matched to 950 nm IR emitters.

PRODUCT SUMMARY COMPONENT VEMT3700F Ica (mA) 0.5 ϕ (deg) ±

Features

  • Package type: surface mount Package form: PLCC-2 Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75 High radiant sensitivity Fast response times Daylight blocking filter matched with 870 nm to 950 nm emitters Angle of half sensitivity: ϕ = ± 60° Package notch indicates collector Package matched with IR emitter series VSML3710 Floor life: 168 h, MSL 3, acc. J-STD-020 Lead (Pb)-free.

📥 Download Datasheet

Datasheet Details

Part number VEMT3700F
Manufacturer Vishay
File Size 186.68 KB
Description Silicon NPN Phototransisto
Datasheet download datasheet VEMT3700F Datasheet

📁 Similar Datasheet

  • VEMD10940F - Silicon PIN Photodiode (Vishay Siliconix)
  • VEMI255A-HS3 - 2-channel EMI Filter (Vishay Siliconix)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

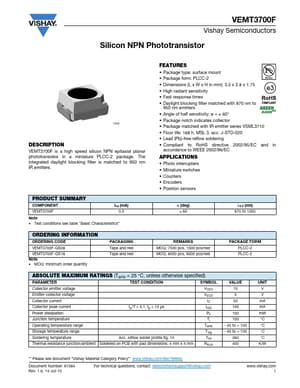

www.DataSheet.co.kr VEMT3700F Vishay Semiconductors Silicon NPN Phototransistor FEATURES • • • • • • • • • • • • Package type: surface mount Package form: PLCC-2 Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75 High radiant sensitivity Fast response times Daylight blocking filter matched with 870 nm to 950 nm emitters Angle of half sensitivity: ϕ = ± 60° Package notch indicates collector Package matched with IR emitter series VSML3710 Floor life: 168 h, MSL 3, acc. J-STD-020 Lead (Pb)-free reflow soldering Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Photo interrupters Miniature switches Counters Encoders Position sensors 19032 DESCRIPTION VEMT3700F is a high speed silicon NPN epitaxial planar phototransistor in a miniature PLCC-2 package.
