VEMT3700 - Silicon NPN Phototransisto

Description

VEMT3700 is a high speed silicon NPN epitaxial planar phototransistor in a miniature PLCC-2 package for surface mounting on printed boards.

The device is sensitive to visible and near infrared radiation.

PRODUCT SUMMARY COMPO

Features

  • Package type: surface mount Package form: PLCC-2 Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75 High photo sensitivity High radiant sensitivity Suitable for visible and near infrared radiation Fast response times Angle of half sensitivity: ϕ = ± 60° Package notch indicates collector Package matched with IR emitter series VSML3710 Floor life: 4 weeks, MSL 2a, acc. J-ST.

📥 Download Datasheet

Datasheet Details

Part number VEMT3700
Manufacturer Vishay
File Size 198.63 KB
Description Silicon NPN Phototransisto
Datasheet download datasheet VEMT3700 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VEMD10940F Silicon PIN Photodiode Vishay Siliconix
VEMI255A-HS3 2-channel EMI Filter Vishay Siliconix

Other Datasheets by Vishay

Part Number Description
VEMT3700F Silicon NPN Phototransisto
VEMT2000X01 Silicon NPN Phototransistor
VEMT2003X01 Silicon NPN Phototransistor
VEMT2020X01 Silicon NPN Phototransistor
VEMT2023SLX01 Silicon NPN Phototransistor

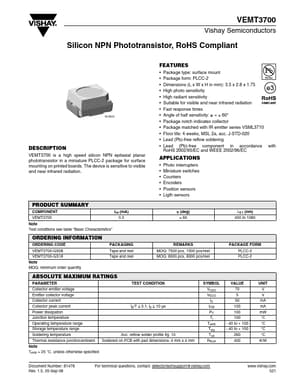

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr VEMT3700 Vishay Semiconductors Silicon NPN Phototransistor, RoHS Compliant FEATURES • • • • • • • • • • • • • Package type: surface mount Package form: PLCC-2 Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75 High photo sensitivity High radiant sensitivity Suitable for visible and near infrared radiation Fast response times Angle of half sensitivity: ϕ = ± 60° Package notch indicates collector Package matched with IR emitter series VSML3710 Floor life: 4 weeks, MSL 2a, acc.
