VEMD5160X01 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

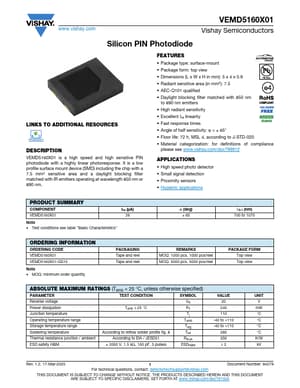

VEMD5160X01 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD5160X01

Datasheet Details

Part number	VEMD5160X01
Manufacturer	Vishay
File Size	207.89 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD5160X01 Datasheet

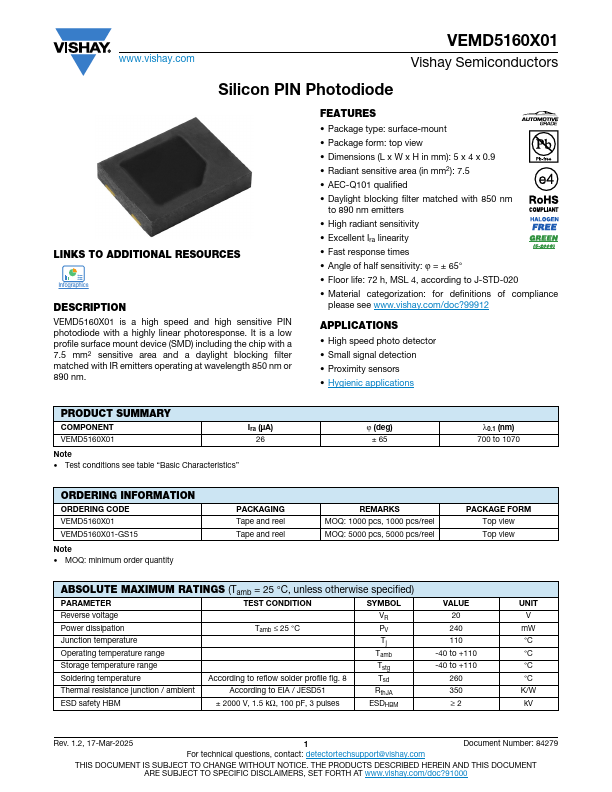

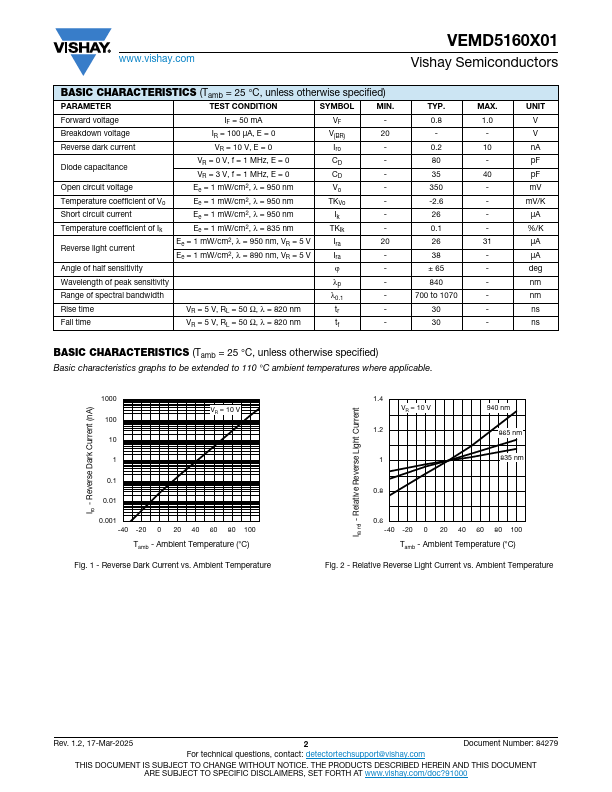

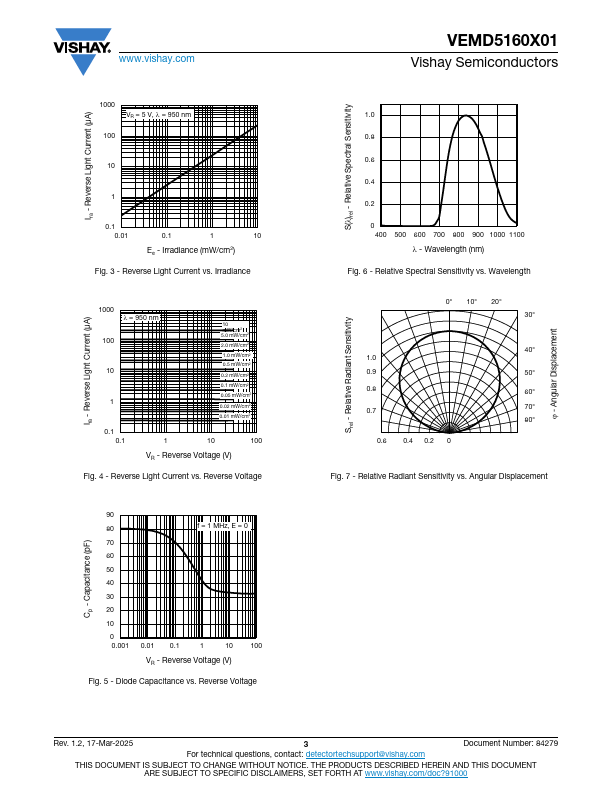

Additional preview pages of the VEMD5160X01 datasheet.

Product details

Description

VEMD5160X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse.

Features

Package type: surface-mount.
Package form: top view.
Dimensions (L x W x H in mm): 5 x 4 x 0.9.
Radiant sensitive area (in mm2): 7.5.
AEC-Q101 qualified.
Daylight blocking filter matched with 850 nm to 890 nm emitters.
High radiant sensitivity.
Excellent Ira linearity.
Fast response times.
Angle of half sensitivity: ϕ = ± 65°.
Floor life: 72 h, MSL 4, according to J-STD-020.
Material cate.
