VEMD2704 - Silicon PIN Photodiode

Product Overview

Vishay

📥 Download Datasheet

VEMD2704 Silicon PIN Photodiode by Vishay - Datasheet Preview — Datasheet preview – VEMD2704

Datasheet Details

Part number	VEMD2704
Manufacturer	Vishay
File Size	117.78 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD2704 Datasheet

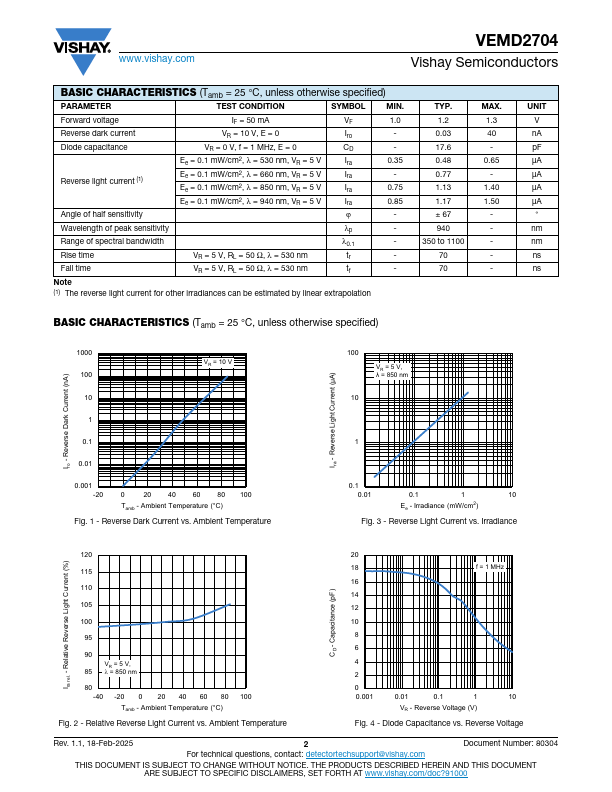

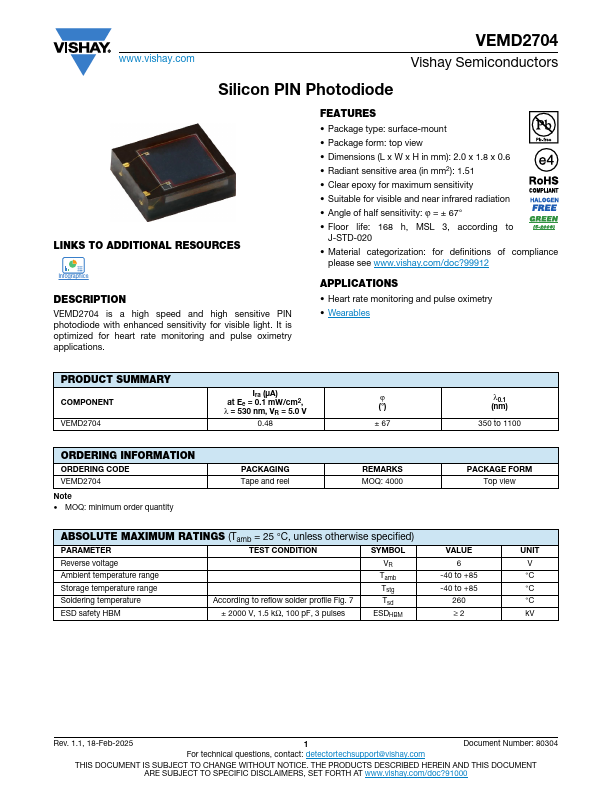

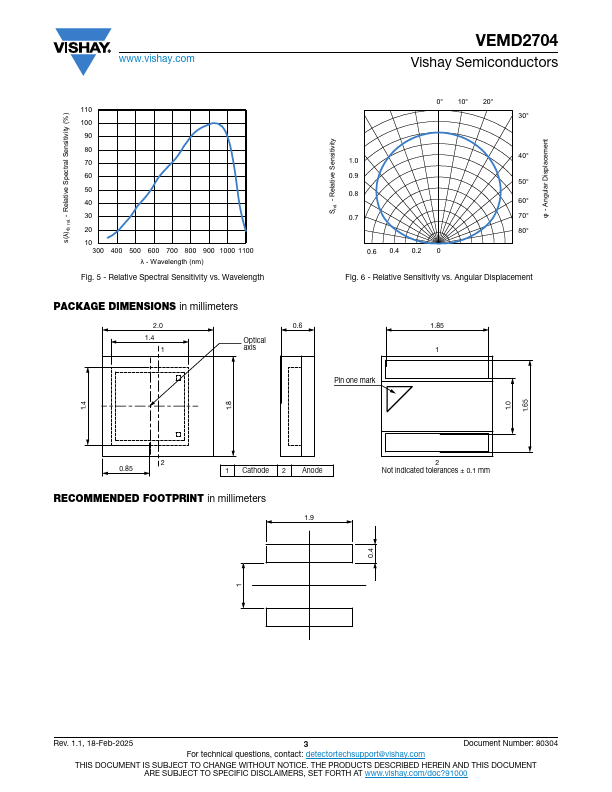

Additional preview pages of the VEMD2704 datasheet.

Product details

Description

VEMD2704 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light.

Features

Package type: surface-mount.
Package form: top view.
Dimensions (L x W x H in mm): 2.0 x 1.8 x 0.6.
Radiant sensitive area (in mm2): 1.51.
Clear epoxy for maximum sensitivity.
Suitable for visible and near infrared radiation.
Angle of half sensitivity: ϕ = ± 67°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
