VEMD2523X01, VEMD2503X01 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

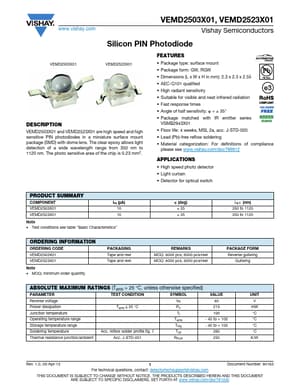

VEMD2523X01 Datasheet Preview — This datasheet PDF includes multiple part numbers: VEMD2523X01, VEMD2503X01. Please refer to the document for exact specifications by model.

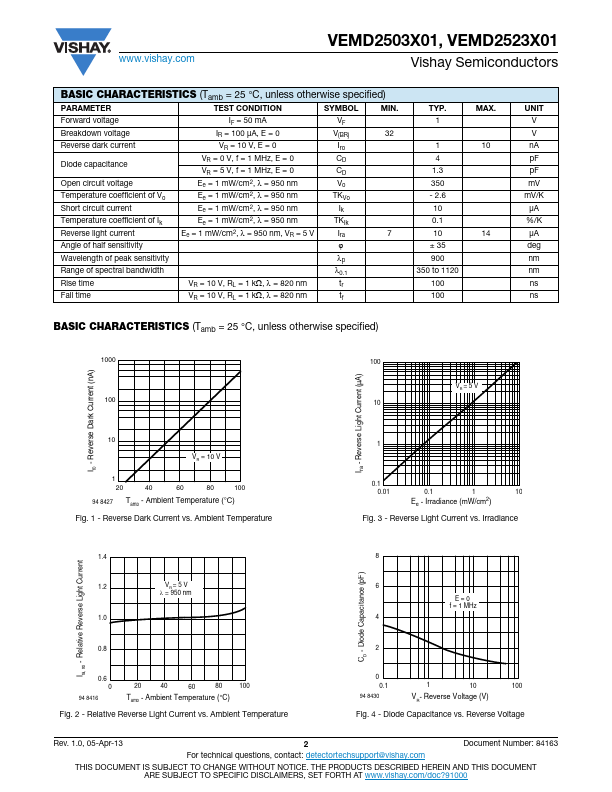

datasheet Preview Page 2

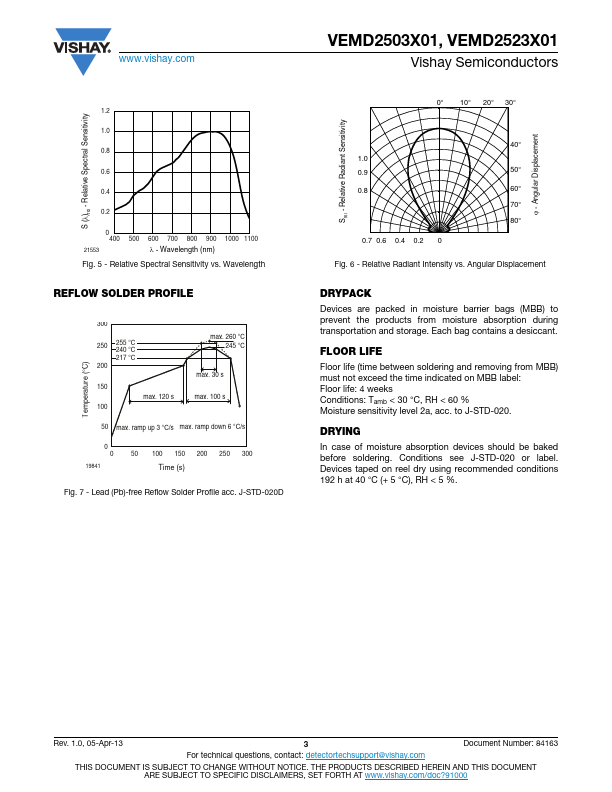

datasheet Preview Page 3

Datasheet Details

Part number	VEMD2523X01, VEMD2503X01
Manufacturer	Vishay
File Size	205.54 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD2503X01-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VEMD2523X01, VEMD2503X01. Please refer to the document for exact specifications by model.

VEMD2523X01 Product details

Description

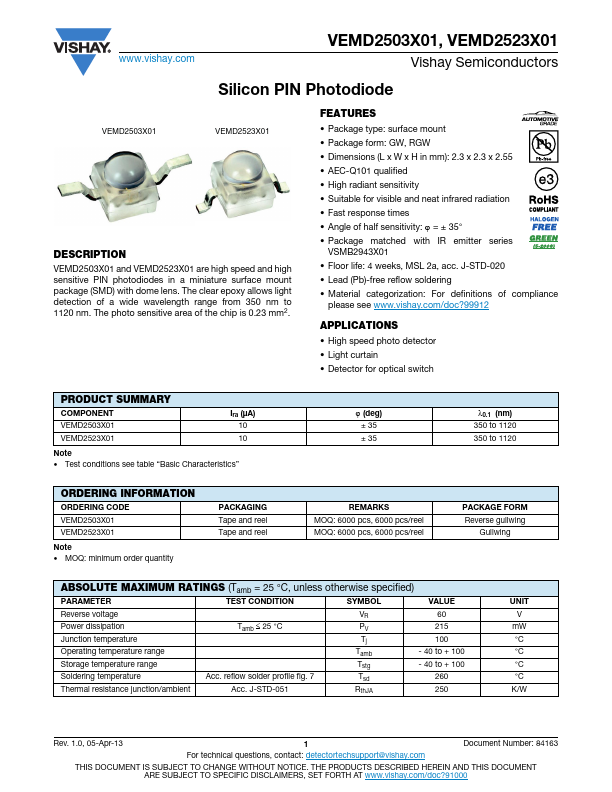

VEMD2503X01 and VEMD2523X01 are high speed and high sensitive PIN photodiodes in a miniature surface mount package (SMD) with dome lens.

Features

Package type: surface mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.55.
AEC-Q101 qualified.
High radiant sensitivity.
Suitable for visible and neat infrared radiation.
Fast response times.
Angle of half sensitivity:  = ± 35°.
Package matched with IR emitter series VSMB2943X01.
Floor life: 4 weeks, MSL 2a, acc. J-STD-020.
Lead (Pb)-free reflow soldering.
Materi.
