US1A - Surface Mount Ultrafast Rectifier

Vishay

The US1A by Vishay is a Surface Mount Ultrafast Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

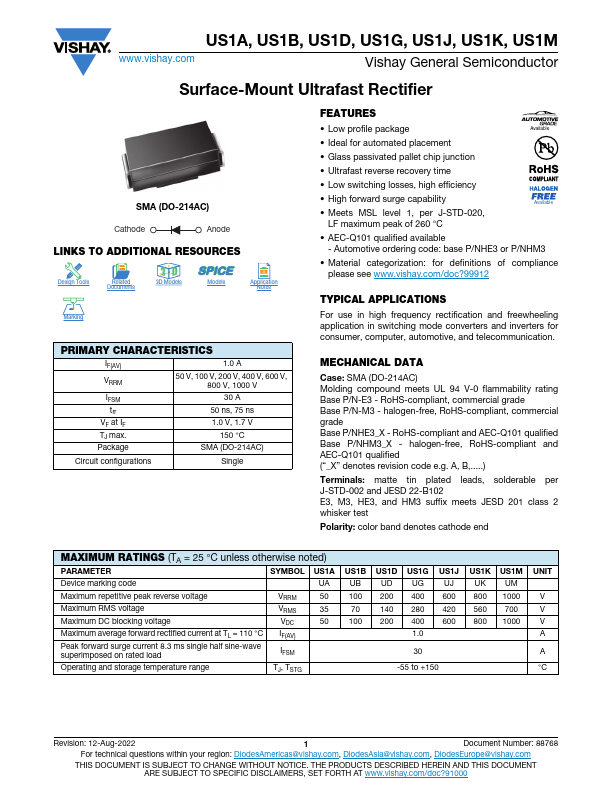

US1A Surface Mount Ultrafast Rectifier by Vishay - Datasheet Preview — Official preview page of the US1A Surface Mount Ultrafast Rectifier datasheet (Vishay).

Datasheet Details

Part number	US1A
Manufacturer	Vishay
File Size	112.06 KB
Description	Surface Mount Ultrafast Rectifier
Datasheet	US1A-Vishay.pdf

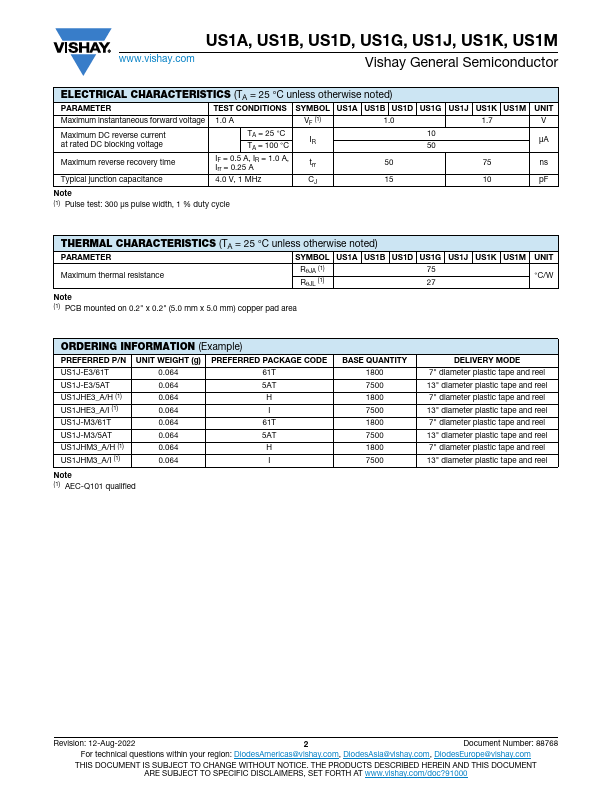

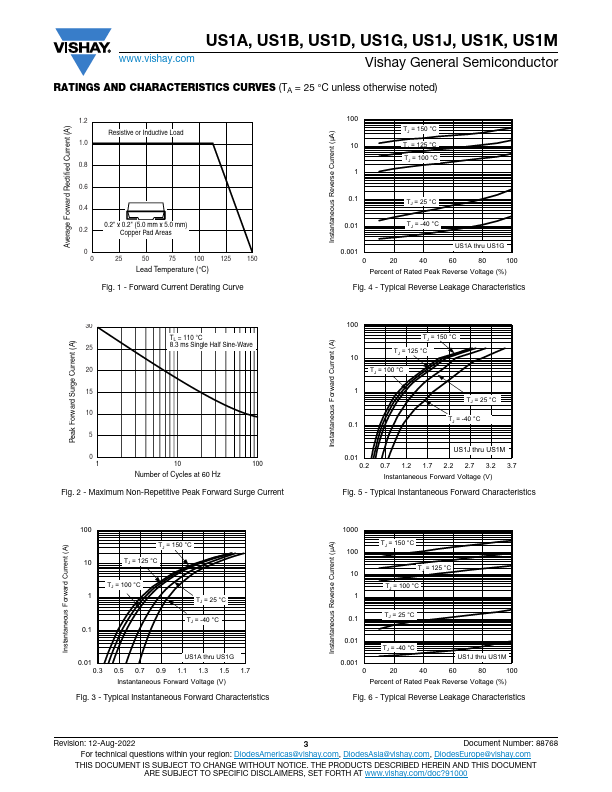

Additional preview pages of the US1A datasheet.

US1A Product details

Features

Low profile package Available.
Ideal for automated placement.
Glass passivated pallet chip junction.
Ultrafast reverse recovery time.
Low switching losses, high efficiency.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Available.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions of complianc.
