ULDCR02 - Stainless Steel Braking/Crowbar Resistor

Download the ULDCR02 datasheet PDF (ULDCR01 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for stainless steel braking/crowbar resistor.

Description

Part Number: ULDCR07R080KLX000 U L D C R 0 7 R 0 8 0 K L X 0 0 0 MODEL ULDCR VARIANT 01 02 03 04 05 06 07 08 09 VALUE 4 digit value R = Decimal R080 = 0.08  TOLERANCE CODE K = ± 10.0 % PACKAGING CODE LX = Loose pack without quantity SPECIAL 000 = Standard 3 digits alphanumeri

Features

  • High pulse energy capability up to 3.46 MJ.
  • Surface temperature increase below 450 K for single pulse.
  • Operating temperature: - 55 °C to + 375 °C.
  • Modular system - user expandable.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ULDCR01_Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ULDCR02
Manufacturer Vishay
File Size 109.88 KB
Description Stainless Steel Braking/Crowbar Resistor
Datasheet download datasheet ULDCR02 Datasheet

📁 Similar Datasheet

  • ULD0611 - HIGH POWER FACTOR LINEAR CONSTANT CURRENT LED DRIVER (UTC)
  • ULD3380 - HIGH EFFICIENCY PWM BUCK LED DRIVER CONTROLLER (UTC)
  • ULD5121 - ADAPTIVE 100/120Hz CURRENT RIPPLE REMOVING CIRCUIT CONTROLLER (UTC)
  • ULD5131 - ADAPTIVE 100/120Hz CURRENT RIPPLE REMOVING CIRCUIT CONTROLLER (UTC)
  • ULD5132 - ADAPTIVE 100/120Hz CURRENT RIPPLE REMOVING CIRCUIT CONTROLLER (UTC)
  • ULD5133 - ADAPTIVE 100/120Hz CURRENT RIPPLE REMOVING CIRCUIT CONTROLLER (UTC)
Other Datasheets by Vishay
  • ULDCR01 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR03 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR04 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR05 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR06 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR07 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR08 - Stainless Steel Braking/Crowbar Resistor
  • ULDCR09 - Stainless Steel Braking/Crowbar Resistor

Full PDF Text Transcription

Click to expand full text

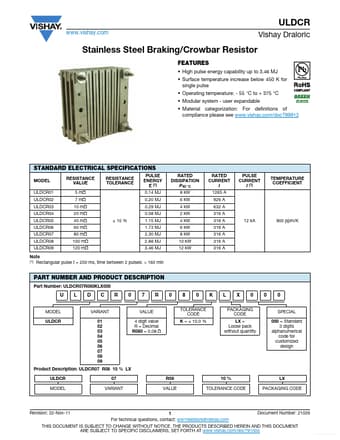

ULDCR www.vishay.com Vishay Draloric Stainless Steel Braking/Crowbar Resistor FEATURES • High pulse energy capability up to 3.46 MJ • Surface temperature increase below 450 K for single pulse • Operating temperature: - 55 °C to + 375 °C • Modular system - user expandable • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 STANDARD ELECTRICAL SPECIFICATIONS MODEL ULDCR01 ULDCR02 ULDCR03 ULDCR04 ULDCR05 ULDCR06 ULDCR07 ULDCR08 ULDCR09 RESISTANCE VALUE 5 m 7 m 10 m 20 m 40 m 60 m 80 m 100 m 120 m ± 10 % RESISTANCE TOLERANCE PULSE ENERGY E (1) 0.14 MJ 0.20 MJ 0.29 MJ 0.58 MJ 1.15 MJ 1.73 MJ 2.30 MJ 2.88 MJ 3.
