TZX9V1E - Small Signal Zener Diodes

Download the TZX9V1E datasheet PDF. This datasheet also covers the TZX2V4A variant, as both devices belong to the same small signal zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very sharp reverse characteristic.
  • Low reverse current level.
  • Very high stability.
  • Low noise.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZX2V4A-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZX9V1E
Manufacturer Vishay
File Size 122.52 KB
Description Small Signal Zener Diodes
Datasheet download datasheet TZX9V1E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TZX9V1E 500mW Silicon Zener Diodes MCC
TZX9V1E 500mW EPITAXIAL PLANAR ZENER DIODE Diodes Incorporated
TZX9V1 500mW Silicon Zener Diodes MCC
TZX9V1 500mW EPITAXIAL PLANAR ZENER DIODE Diodes Incorporated
TZX9V1A 500mW Silicon Zener Diodes MCC

Other Datasheets by Vishay

Part Number Description
TZX9V1A Small Signal Zener Diodes
TZX9V1B Small Signal Zener Diodes
TZX9V1C Small Signal Zener Diodes
TZX9V1D Small Signal Zener Diodes
TZX10A Small Signal Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

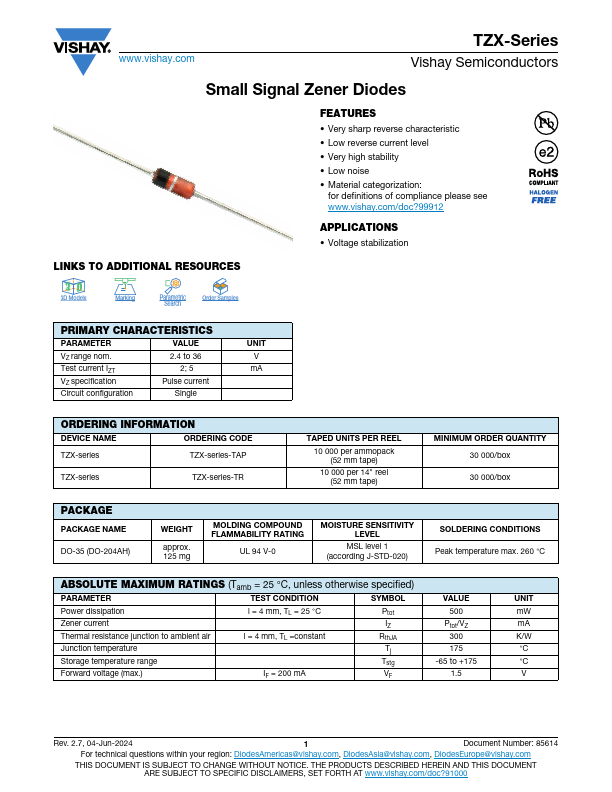

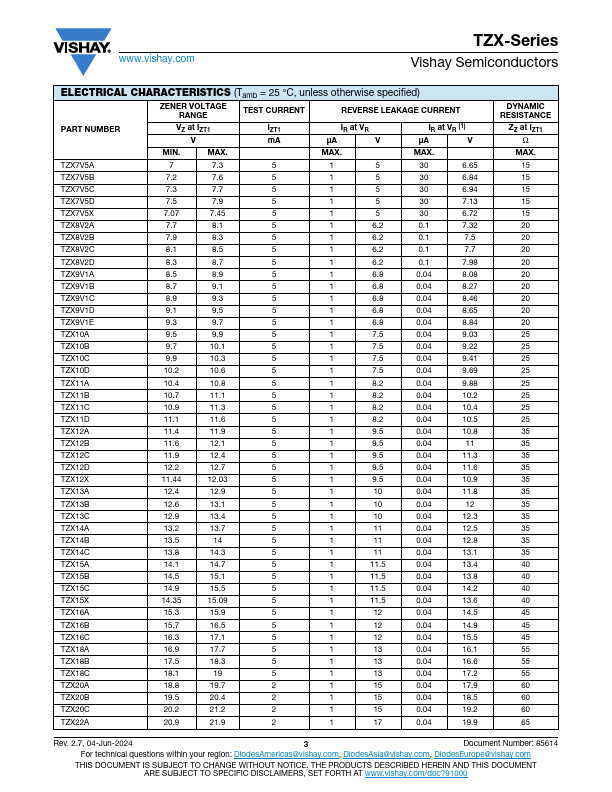

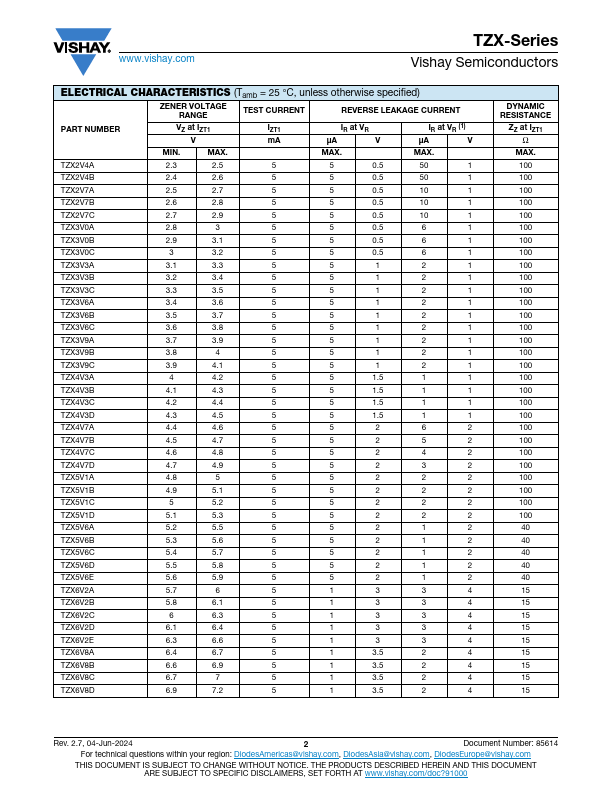

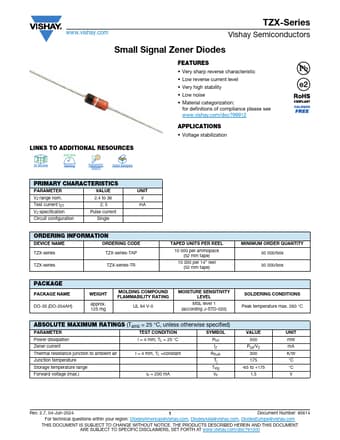

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes FEATURES • Very sharp reverse characteristic • Low reverse current level • Very high stability • Low noise • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.
