TZX36A - Small Signal Zener Diodes

Download the TZX36A datasheet PDF. This datasheet also covers the TZX2V4A variant, as both devices belong to the same small signal zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very sharp reverse characteristic.
  • Low reverse current level.
  • Very high stability.
  • Low noise.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZX2V4A-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZX36A
Manufacturer Vishay
File Size 122.52 KB
Description Small Signal Zener Diodes
Datasheet download datasheet TZX36A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TZX36A 500mW Silicon Zener Diodes MCC
TZX36 500mW Silicon Zener Diodes MCC
TZX36B 500mW Silicon Zener Diodes MCC
TZX36C 500mW Silicon Zener Diodes MCC
TZX30 500mW Silicon Zener Diodes MCC

Other Datasheets by Vishay

Part Number Description
TZX36B Small Signal Zener Diodes
TZX36C Small Signal Zener Diodes
TZX36X Small Signal Zener Diodes
TZX30A Small Signal Zener Diodes
TZX30B Small Signal Zener Diodes

Full PDF Text Transcription

Click to expand full text

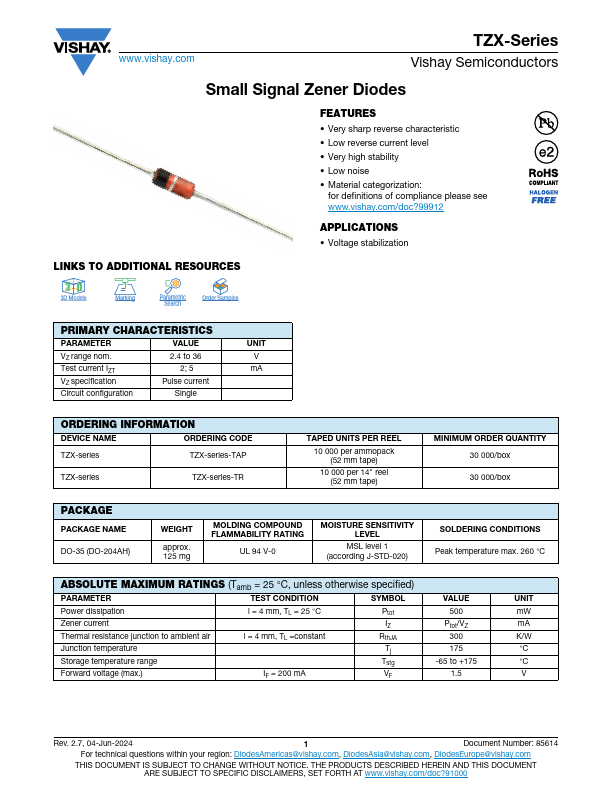

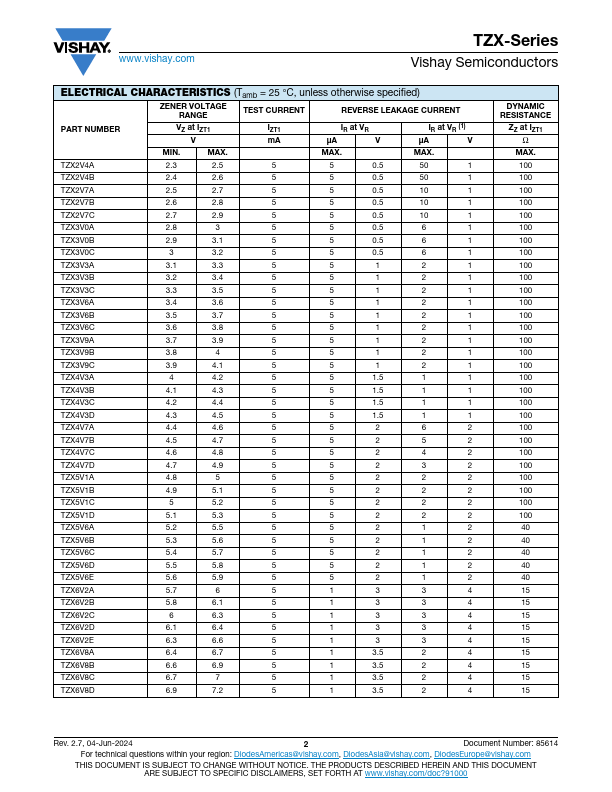

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes FEATURES • Very sharp reverse characteristic • Low reverse current level • Very high stability • Low noise • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS • Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.
