TZX2V4A - Small Signal Zener Diodes

TZX2V4A Description

www.vishay.com TZX-Series Vishay Semiconductors Small Signal Zener Diodes .

TZX2V4A Features

* Very sharp reverse characteristic
* Low reverse current level
* Very high stability
* Low noise

TZX2V4A Applications

* Voltage stabilization LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Circuit configuration 2.4 to 36 2; 5 Pulse current Single UNIT V mA ORDERING INFOR

📥 Download Datasheet

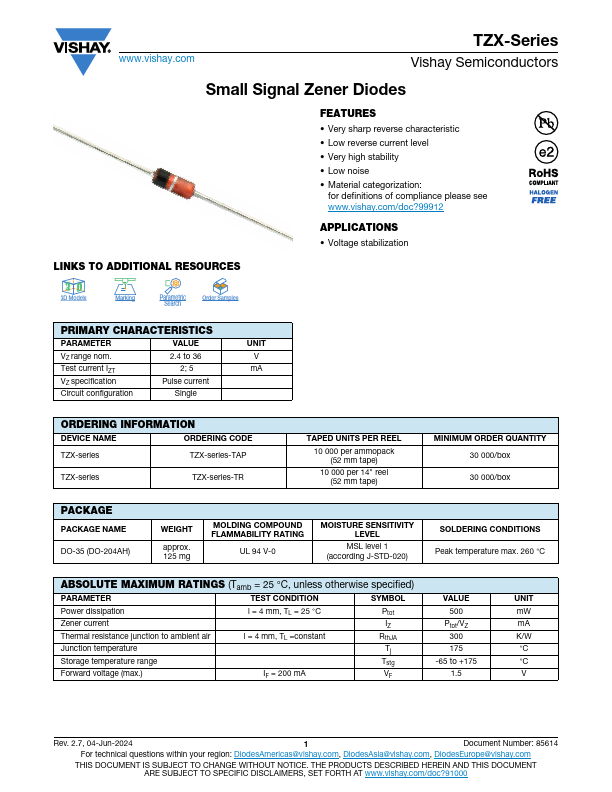

Preview of TZX2V4A PDF

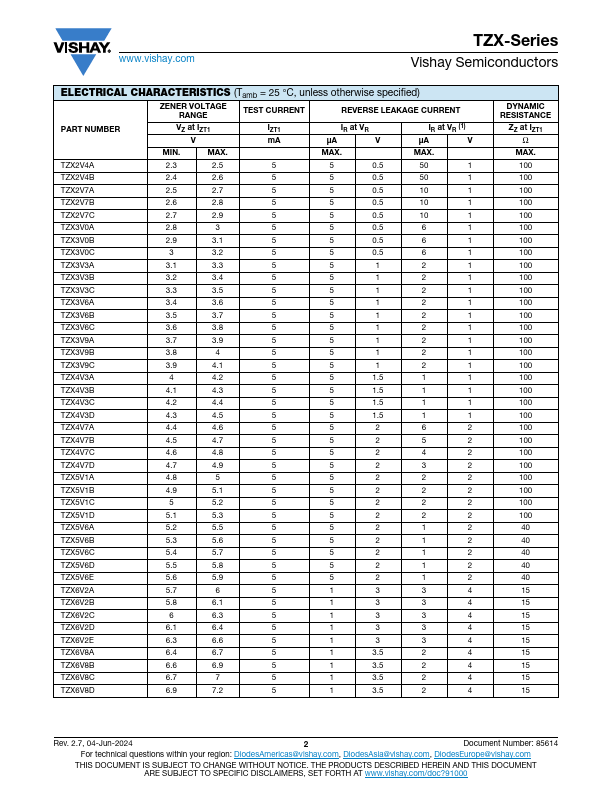

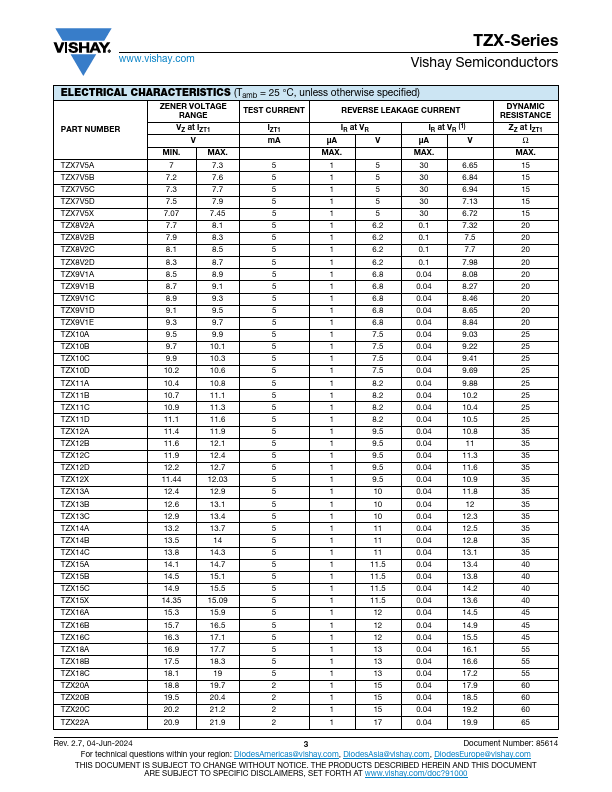

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TZX2V4A
Manufacturer
Vishay ↗
File Size
122.52 KB
Datasheet
TZX2V4A-Vishay.pdf
Description
Small Signal Zener Diodes
