TZMB7V5-M - Small Signal Zener Diodes

Download the TZMB7V5-M datasheet PDF (TZMC2V4-M included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for small signal zener diodes.

Features

  • Very sharp reverse characteristic.
  • Low reverse current level.
  • Very high stability.
  • Low noise.
  • TZMC - VZ-tolerance ± 5 %.
  • TZMB - VZ-tolerance ± 2 %.
  • AEC-Q101 qualified.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZMC2V4-M-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZMB7V5-M
Manufacturer Vishay
File Size 102.37 KB
Description Small Signal Zener Diodes
Datasheet download datasheet TZMB7V5-M Datasheet

📁 Similar Datasheet

  • TZMB7V5 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB75 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB10 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB11 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB12 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB13 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB15 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB16 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
  • TZMB18 - Silicon Epitaxial Planar Z-Diodes (Vishay Telefunken)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

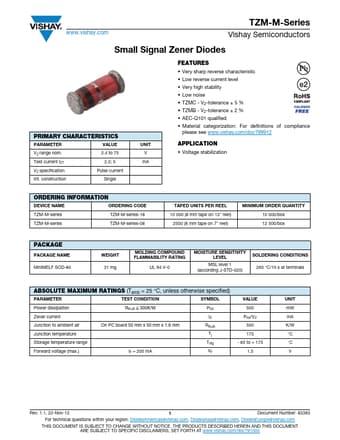

www.vishay.com TZM-M-Series Vishay Semiconductors Small Signal Zener Diodes PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Int. construction 2.4 to 75 2.5; 5 Pulse current Single UNIT V mA FEATURES • Very sharp reverse characteristic • Low reverse current level • Very high stability • Low noise • TZMC - VZ-tolerance ± 5 % • TZMB - VZ-tolerance ± 2 % • AEC-Q101 qualified • Material categorization: For definitions of compliance please see www.vishay.
