TZM5242 - Small Signal Zener Diodes

Download the TZM5242 datasheet PDF. This datasheet also covers the TZM5221 variant, as both devices belong to the same small signal zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very sharp reverse characteristic.
  • Very high stability.
  • Electrical data identical with the devices 1N5221B to 1N5267B.
  • Low reverse current level.
  • Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e. g. : TZM5221B), suffix “C” is ± 2 % tolerance.
  • AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZM5221-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZM5242
Manufacturer Vishay
File Size 77.15 KB
Description Small Signal Zener Diodes
Datasheet download datasheet TZM5242 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TZM5242B (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes TAITRON Components Incorporated
TZM5240B (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes TAITRON Components Incorporated
TZM5241B (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes TAITRON Components Incorporated
TZM5243B (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes TAITRON Components Incorporated
TZM5244B (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes TAITRON Components Incorporated

Other Datasheets by Vishay

Part Number Description
TZM5242B Small Signal Zener Diodes
TZM5240 Small Signal Zener Diodes
TZM5240B Small Signal Zener Diodes
TZM5241 Small Signal Zener Diodes
TZM5241B Small Signal Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

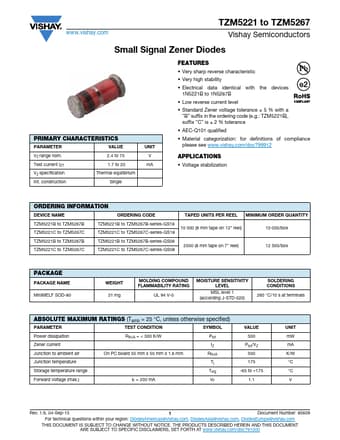

www.vishay.com TZM5221 to TZM5267 Vishay Semiconductors Small Signal Zener Diodes PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Int. construction 2.4 to 75 1.7 to 20 Thermal equilibrium Single UNIT V mA FEATURES • Very sharp reverse characteristic • Very high stability • Electrical data identical with the devices 1N5221B to 1N5267B • Low reverse current level • Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e.g.: TZM5221B), suffix “C” is ± 2 % tolerance • AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
