TZM5232 - Small Signal Zener Diodes

Download the TZM5232 datasheet PDF (TZM5221 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for small signal zener diodes.

Features

  • Very sharp reverse characteristic.
  • Very high stability.
  • Electrical data identical with the devices 1N5221B to 1N5267B.
  • Low reverse current level.
  • Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e. g. : TZM5221B), suffix “C” is ± 2 % tolerance.
  • AEC-Q101 qualified.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TZM5221-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TZM5232
Manufacturer Vishay
File Size 77.15 KB
Description Small Signal Zener Diodes
Datasheet download datasheet TZM5232 Datasheet

📁 Similar Datasheet

  • TZM5232B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5230B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5231B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5233B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5234B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5235B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5236B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5237B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5238B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
  • TZM5239B - (TZM5221B - TZM5267B) 500mW Surface Mount Zener Diodes (TAITRON Components Incorporated)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

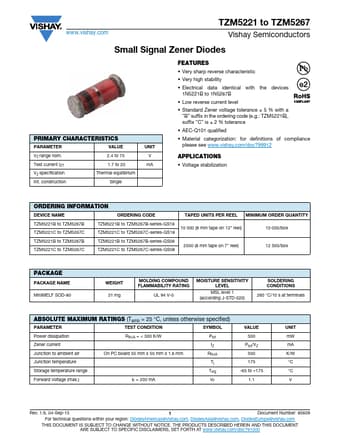

www.vishay.com TZM5221 to TZM5267 Vishay Semiconductors Small Signal Zener Diodes PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Int. construction 2.4 to 75 1.7 to 20 Thermal equilibrium Single UNIT V mA FEATURES • Very sharp reverse characteristic • Very high stability • Electrical data identical with the devices 1N5221B to 1N5267B • Low reverse current level • Standard Zener voltage tolerance ± 5 % with a “B” suffix in the ordering code (e.g.: TZM5221B), suffix “C” is ± 2 % tolerance • AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.vishay.
