TSOP99636TR1, TSOP99630TR1 IR Receiver

TSOP99636TR1 Description

www.vishay.com TSOP996..TR1 Vishay Semiconductors IR Receiver Modules for Remote Control Systems 4 3 2 1 22964 .
The TSOP99TR1 series devices are the latest generation miniaturized IR receiver modules for infrared remote control systems.

TSOP99636TR1 Features

* Improved dark sensitivity
* Improved immunity against optical noise
* Very low supply current
* Photo detector and preamplifier in one package
* Internal filter for PCM frequency
* Supply voltage: 2.0 V to 3.6 V
* Insensitive to supply voltag

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSOP99636TR1, TSOP99630TR1. Please refer to the document for exact specifications by model.

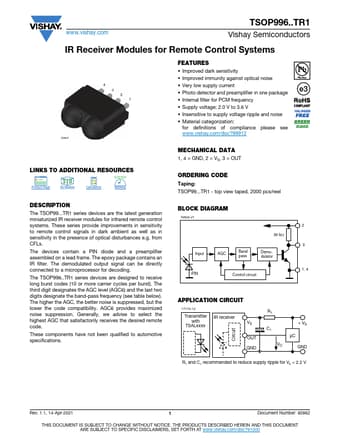

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSOP99636TR1, TSOP99630TR1
Manufacturer
Vishay ↗
File Size
397.53 KB
Datasheet
TSOP99630TR1-Vishay.pdf
Description
IR Receiver
Note
This datasheet PDF includes multiple part numbers: TSOP99636TR1, TSOP99630TR1.
Please refer to the document for exact specifications by model.
