TSOP37240H, TSOP37236H - IR Receiver

Name: TSOP37240H
SKU: TSOP37240H-1431852

Vishay

The TSOP37240H by Vishay is a IR Receiver. Below is the official datasheet preview.

Datasheet Details

Part number	TSOP37240H, TSOP37236H
Manufacturer	Vishay
File Size	347.69 KB
Description	IR Receiver
Datasheet	TSOP37236H-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: TSOP37240H, TSOP37236H. Please refer to the document for exact specifications by model.

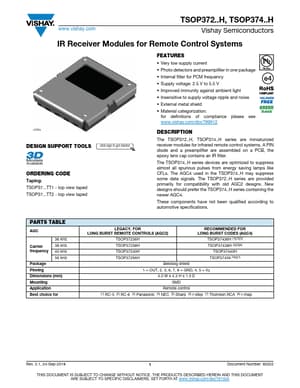

Additional preview pages of the TSOP37240H datasheet.

The TSOP372..H, TSOP374..H series are miniaturized receiver modules for infrared remote control systems.

Very low supply current.
Photo detectors and preamplifier in one package.
Internal filter for PCM frequency.
Supply voltage: 2.5 V to 5.5 V.
Improved immunity against ambient light.
Insensitive to supply voltage ripple and noise.
External metal shield.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
