TSHA6501 - Infrared Emitting Diode

Name: TSHA6501
SKU: TSHA6501-1009821

Vishay

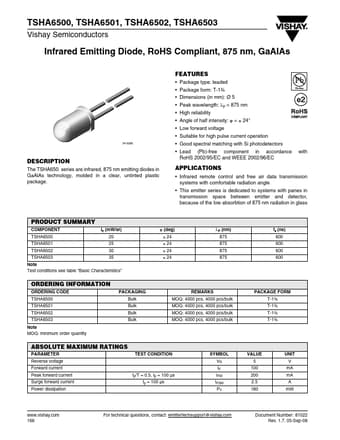

The TSHA6501 by Vishay is a Infrared Emitting Diode. Below is the official datasheet preview.

Datasheet Details

Part number	TSHA6501
Manufacturer	Vishay
File Size	102.36 KB
Description	Infrared Emitting Diode
Datasheet	TSHA6501-Vishay.pdf
Additional preview pages of the TSHA6501 datasheet.

The TSHA650.

Package type: leaded.
Package form: T-1¾.
Dimensions (in mm): Ø 5.
Peak wavelength: λp = 875 nm.
High reliability.
Angle of half intensity: ϕ = ± 24°.
Low forward voltage.
Suitable for high pulse current operation.
Good spectral matching with Si photodetectors.
Lead (Pb)-free component in accordance RoHS 2002/95/EC and WEEE 2002/96/EC with.
