TFDT6500, TFDU6100 - Transceiver

TFDT6500 Description

TFDU6100/TFDS6500/TFDT6500 Vishay Telefunken 5 V Fast Infrared Transceiver Module Family (FIR, 4 Mbit/s) .
The TFDU6100, TFDS6500, and TFDT6500 are a family of low. power infrared transceiver modules compliant to the IrDA 1.

TFDT6500 Features

* D Compliant to IrDA 1.2 (Up to 4 Mbit/s), HP
* SIR®, Sharp ASK® and TV Remote D For 4.5 V to 5.5 V Operating Voltage D Low
* Power Consumption (5 mA Supply Current) D Power Shutdown Mode (35 mA Shutdown Current) D Three Surface Mount Package Options
* Universal (9.7 × 4.7 × 4.0 m

TFDT6500 Applications

* and space constraints. The transceivers are capable of directly interfacing with a wide variety of I/O chips which perform the modulation/ demodulation function, including National Semiconductor’s PC87338, PC87108 and PC87109, SMC’s FDC37C669, FDC37N769 and CAM35C44, and Hitachi’s SH3. At a minimum,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TFDT6500, TFDU6100. Please refer to the document for exact specifications by model.

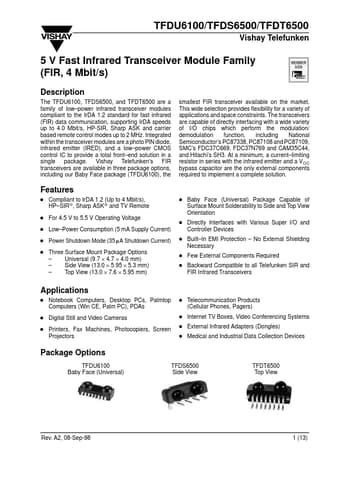

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TFDT6500, TFDU6100
Manufacturer
Vishay ↗
File Size
248.23 KB
Datasheet
TFDU6100-Vishay.pdf
Description
Transceiver
Note
This datasheet PDF includes multiple part numbers: TFDT6500, TFDU6100.
Please refer to the document for exact specifications by model.
