T1070P Silicon NPN Phototransistor

T1070P Description

www.vishay.com T1070P Vishay Semiconductors Silicon NPN Phototransistor E B 21682 .
T1070P ambient light sensor chip is a silicon NPN epitaxial planar phototransistor.

T1070P Features

* Package type: chip
* Package form: single chip
* Dimensions (L x W x H in mm): 0.72 x 0.72 x 0.22
* Wafer diameter (in mm): 100
* Radiant sensitive area (in mm2): 0.25
* High photo sensitivity
* Suitable for visible light
* Fast respo

T1070P Applications

* Ambient light sensor
* Backlight dimmer GENERAL INFORMATION The datasheet is based on Vishay optoelectronics sample testing under certain predetermined and assumed conditions, and is provided for illustration purpose only. Customers are encouraged to perform testing in actual prop

📥 Download Datasheet

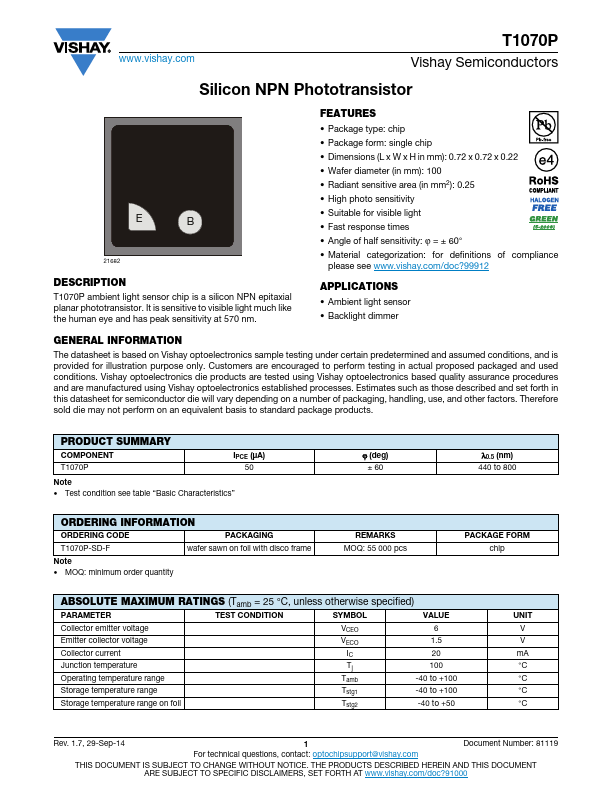

Preview of T1070P PDF

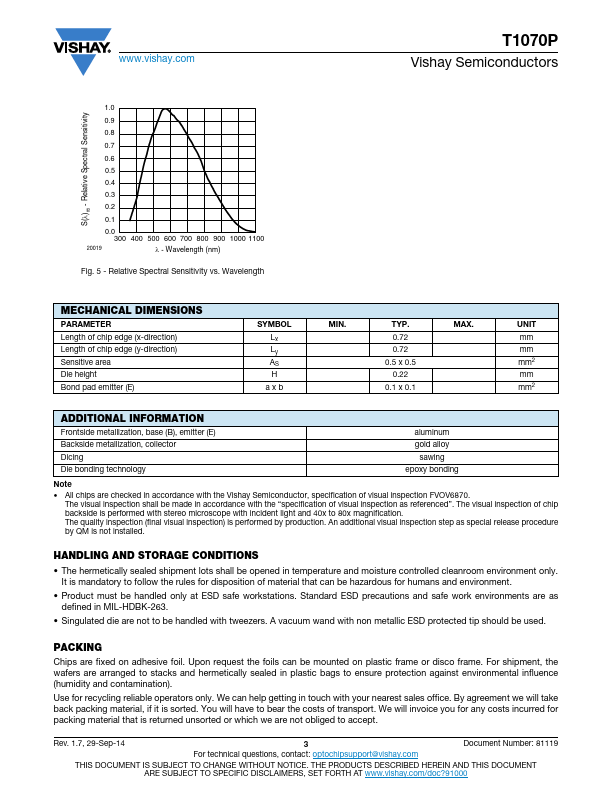

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
T1070P
Manufacturer
Vishay ↗
File Size
82.77 KB
Datasheet
T1070P-Vishay.pdf
Description
Silicon NPN Phototransistor
