SiS110DN - N-Channel 100V MOSFET

Features

  • TrenchFET® Gen IV power MOSFET.
  • Tuned for the lowest RDS - Qoss FOM.
  • 100 % Rg and UIS tested.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet Details

Part number SiS110DN
Manufacturer Vishay
File Size 241.74 KB
Description N-Channel 100V MOSFET
Datasheet download datasheet SiS110DN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SiS1057 JFET Operational Amplifier Silicon Supplies
SIS0100 Black and White Image Sensor Camera Module Sanyo Semicon Device
SIS23C128 16K x 8 CMOS Mask ROM Silicon Integrated Systems
SIS23C128A 16K x 8 CMOS Mask ROM Silicon Integrated Systems
SIS23C256 CMOS MASK ROM ETC

Other Datasheets by Vishay

Part Number Description
SiS106DN N-Channel 60V MOSFET
SiS128LDN N-Channel 80V MOSFET
SiS176LDN N-Channel 70V MOSFET
SiS178LDN N-Channel 70V MOSFET
SiS184DN N-Channel 60V MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

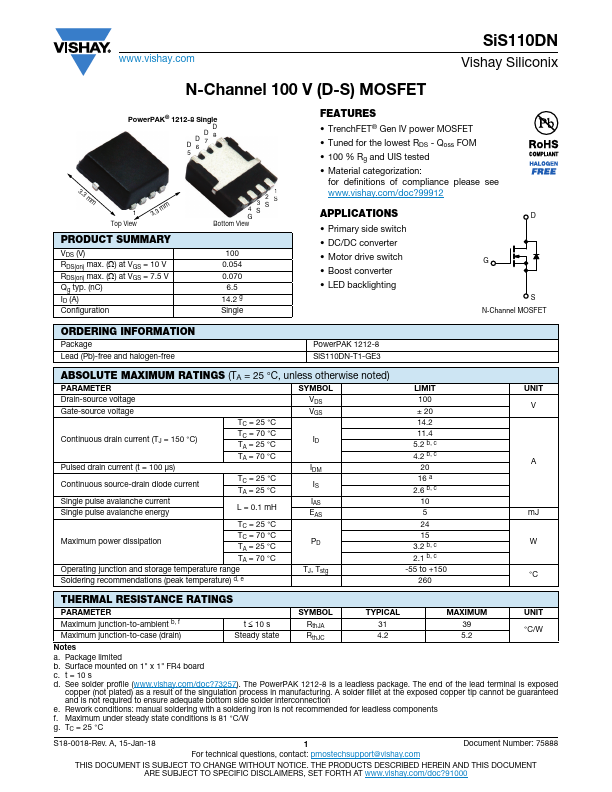

www.vishay.com SiS110DN Vishay Siliconix N-Channel 100 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) max. () at VGS = 7.5 V Qg typ. (nC) ID (A) Configuration 1 2S 3S 4S G Bottom View 100 0.054 0.070 6.5 14.2 g Single FEATURES • TrenchFET® Gen IV power MOSFET • Tuned for the lowest RDS - Qoss FOM • 100 % Rg and UIS tested • Material categorization: for definitions of compliance please see www.vishay.
