SiHD2N80AE - Power MOSFET

Vishay

📥 Download Datasheet

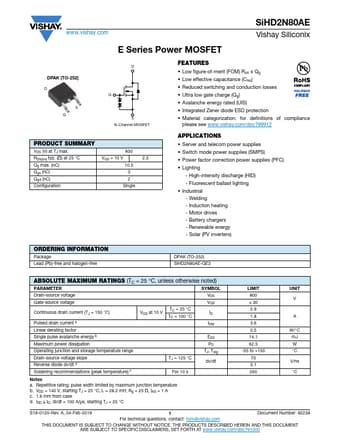

SiHD2N80AE Datasheet Preview — Preview of SiHD2N80AE PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SiHD2N80AE
Manufacturer	Vishay
File Size	134.34 KB
Description	Power MOSFET
Datasheet	SiHD2N80AE-Vishay.pdf

SiHD2N80AE Product details

Features

Low figure-of-merit (FOM) Ron x Qg.
Low effective capacitance (Ciss).
Reduced switching and conduction losses.
Ultra low gate charge (Qg).
Avalanche energy rated (UIS).
Integrated Zener diode ESD protection.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
