SUD25N15-52, N-Channel MOSFET

SUD25N15-52 Vishay Siliconix N-Channel 150-V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 150 0.052 at VGS = 10 V 0.060 at VGS = 6 V I.

SUD25N15-52-Vishay.pdf

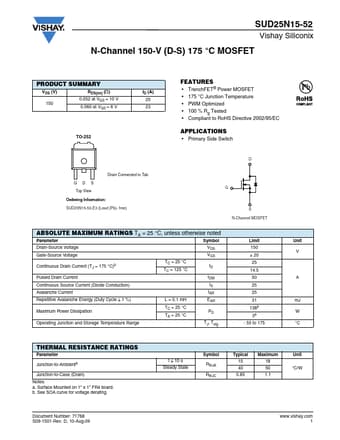

SUD25N15-52 Datasheet Preview — Preview of SUD25N15-52 PDF

Datasheet Details

Part number:

SUD25N15-52

Manufacturer:

Vishay ↗

File Size:

163.38 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

Applications

* Primary Side Switch D Drain Connected to Tab GDS Top View Ordering Information: SUD25N15-52-E3 (Lead (Pb)- free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Cu
