SS1H10, SS1H9 - High-Voltage Surface-Mount Schottky Rectifier

SS1H10 Description

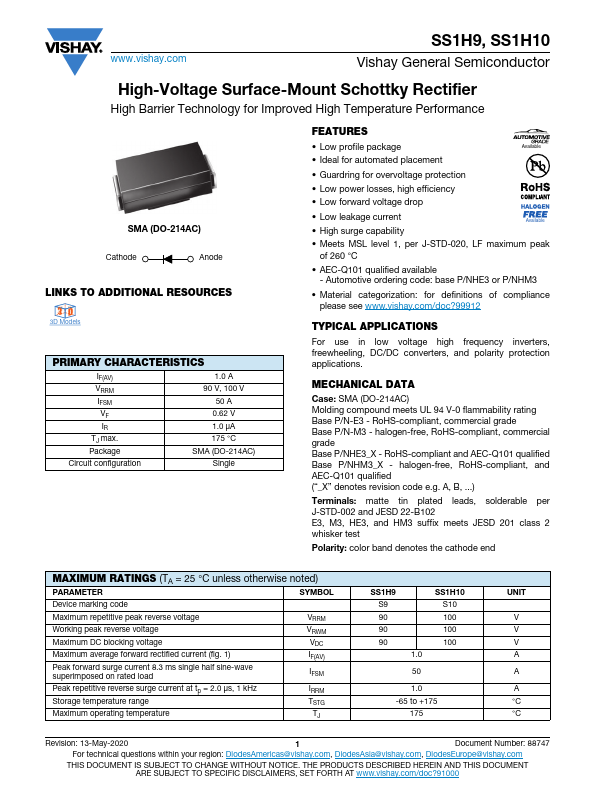

www.vishay.com SS1H9, SS1H10 Vishay General Semiconductor High-Voltage Surface-Mount Schottky Rectifier High Barrier Technology for Improved High Te.

SS1H10 Features

* Low profile package Available
* Ideal for automated placement
* Guardring for overvoltage protection
* Low power losses, high efficiency
* Low forward voltage drop
* Low leakage current
* High surge capability Available
* Mee

SS1H10 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: SMA (DO-214AC) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N-M3 - halogen-free, RoHS-compliant,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS1H10, SS1H9. Please refer to the document for exact specifications by model.

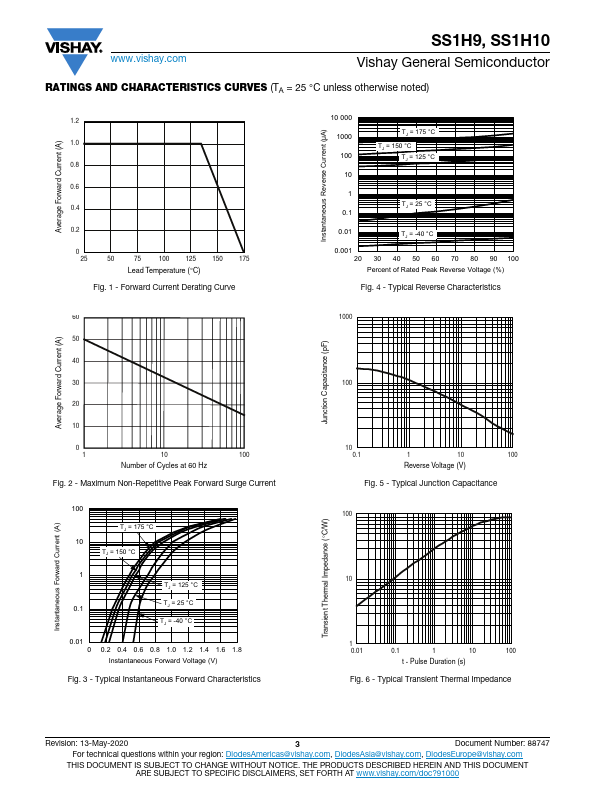

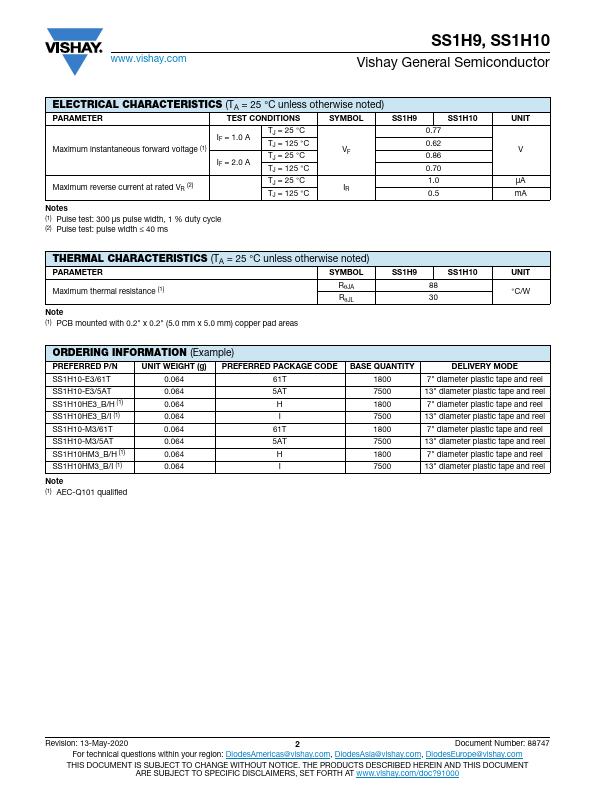

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS1H10, SS1H9
Manufacturer
Vishay ↗
File Size
91.41 KB
Datasheet
SS1H9-Vishay.pdf
Description
High-Voltage Surface-Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SS1H10, SS1H9.
Please refer to the document for exact specifications by model.
