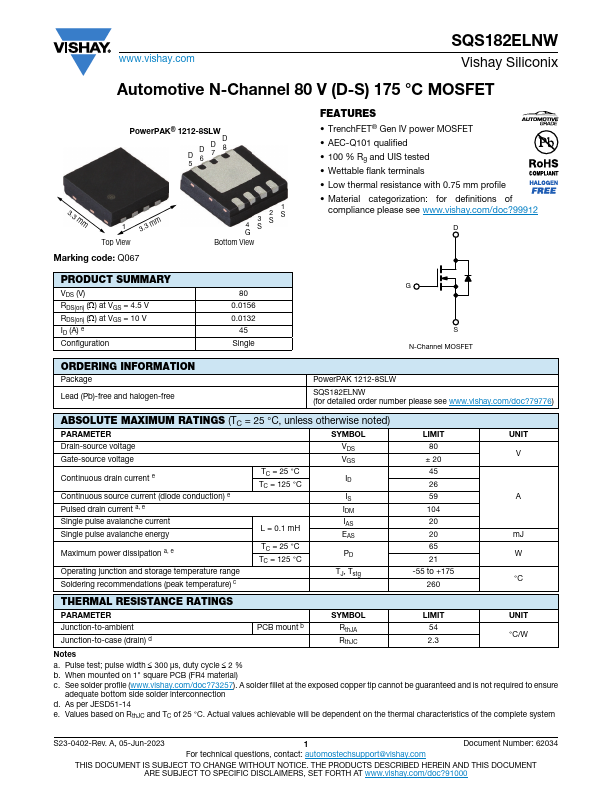

www.vishay.com
SQS182ELNW
Vishay Siliconix
Automotive N-Channel 80 V (D-S) 175 °C MOSFET
PowerPAK® 1212-8SLW
D
D
D 6
D 7
8
5
3.3 mm
1 Top View
3.3 mm
Marking code: Q067
1
4
3 S
2 S
S
G
Bottom View
FEATURES • TrenchFET® Gen IV power MOSFET • AEC-Q101 qualified • 100 % Rg and UIS tested • Wettable flank terminals • Low thermal resistance with 0.75 mm profile • Material categorization: for definitions of
compliance please see www.vishay.com/doc?99912
D
PRODUCT SUMMARY
VDS (V) RDS(on) () at VGS = 4.5 V RDS(on) () at VGS = 10 V ID (A) e Configuration
80 0.0156 0.0132
45 Single
G
S N-Channel MOSFET
ORDERING INFORMATION
Package
Lead (Pb)-free and halogen-free
PowerPAK 1212-8SLW
SQS182ELNW (for detailed order number please see www.vishay.
