SMC5K16A - Transient Voltage Suppressors

Product Overview

Vishay

📥 Download Datasheet

SMC5K16A Transient Voltage Suppressors by Vishay - Datasheet Preview — Datasheet preview – SMC5K16A

Datasheet Details

Part number	SMC5K16A
Manufacturer	Vishay
File Size	96.27 KB
Description	Transient Voltage Suppressors
Datasheet	SMC5K16A Datasheet
Note	This datasheet PDF includes multiple part numbers: SMC5K16A, SMC5K10A. Please refer to the document for exact specifications by model.

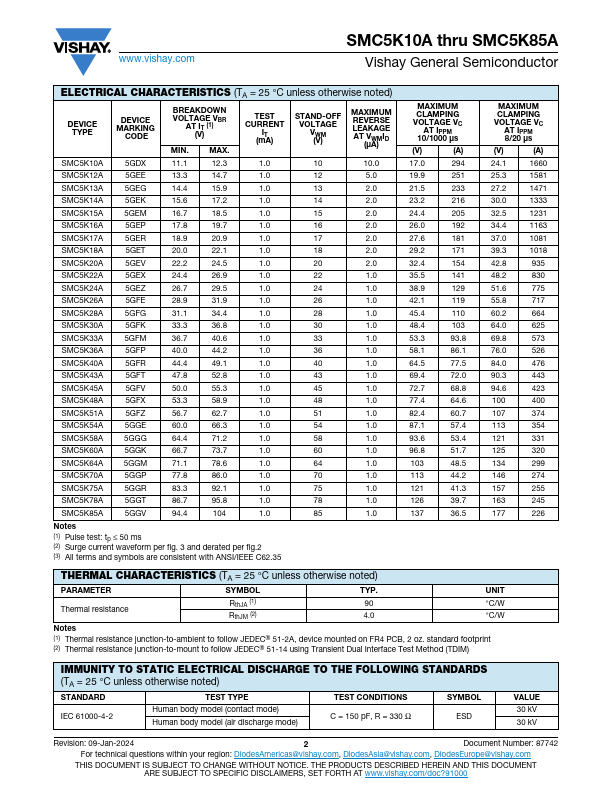

Additional preview pages of the SMC5K16A datasheet.

Product details

Features

Unidirectional.
Peak pulse power: - 5000 W (10/1000 μs) - 40 kW (8/20 μs).
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified - Automotive ordering code: base P/NHM3 for SMC5K10A to SMC5K20A.
UL recognition for safety 497B with file number E136766.
Material categorization: for definitions of compli.
