SIS476DN - N-Channel 30V MOSFET

Features

  • TrenchFET® Gen IV power MOSFET.
  • 100 % Rg and UIS tested.
  • Material categorization:  for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Datasheet Details

Part number SIS476DN
Manufacturer Vishay
File Size 563.66 KB
Description N-Channel 30V MOSFET
Datasheet download datasheet SIS476DN Datasheet

📁 Similar Datasheet

  • SIS43 - SMT Power Induvtor (DELTA ELECTRONICS)
  • SIS0100 - Black and White Image Sensor Camera Module (Sanyo Semicon Device)
  • SiS1057 - JFET Operational Amplifier (Silicon Supplies)
  • SIS23C128 - 16K x 8 CMOS Mask ROM (Silicon Integrated Systems)
  • SIS23C128A - 16K x 8 CMOS Mask ROM (Silicon Integrated Systems)
  • SIS23C256 - CMOS MASK ROM (ETC)
  • SIS23C256A - CMOS MASK ROM (ETC)
  • SIS23C32 - (SIS23C32 / SIS23C33) 4K x 8 CMOS MASK ROM (Silicon Integrated Systems)
  • SIS23C32A - (SIS23C32 / SIS23C33) 4K x 8 CMOS MASK ROM (Silicon Integrated Systems)
  • SIS23C33 - (SIS23C32 / SIS23C33) 4K x 8 CMOS MASK ROM (Silicon Integrated Systems)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

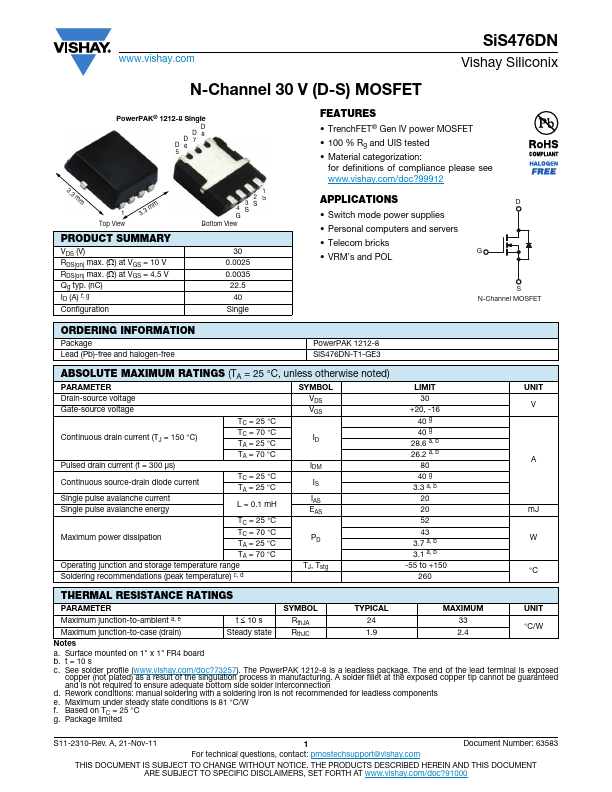

www.vishay.com SiS476DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) max. () at VGS = 4.5 V Qg typ. (nC) ID (A) f, g Configuration 1 2S 3S 4S G Bottom View 30 0.0025 0.0035 22.5 40 Single FEATURES • TrenchFET® Gen IV power MOSFET • 100 % Rg and UIS tested • Material categorization:  for definitions of compliance please see www.vishay.
