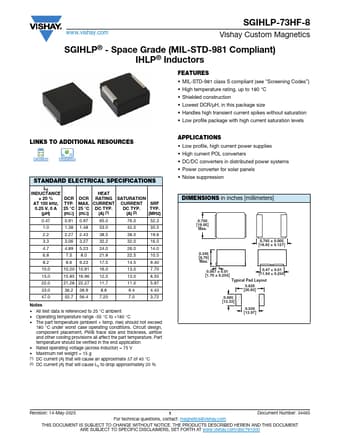

SGIHLP-73HF-8 - Space Grade Inductors

Vishay

The SGIHLP-73HF-8 by Vishay is a Space Grade Inductors. Below is the official datasheet preview.

📥 Download Datasheet

SGIHLP-73HF-8 Space Grade Inductors by Vishay - Datasheet Preview — Official preview page of the **SGIHLP-73HF-8** Space Grade Inductors datasheet (Vishay).

Datasheet Details

Part number	SGIHLP-73HF-8
Manufacturer	Vishay
File Size	331.80 KB
Description	Space Grade Inductors
Datasheet	SGIHLP-73HF-8-Vishay.pdf
Additional preview pages of the SGIHLP-73HF-8 datasheet.

SGIHLP-73HF-8 Product details

Description

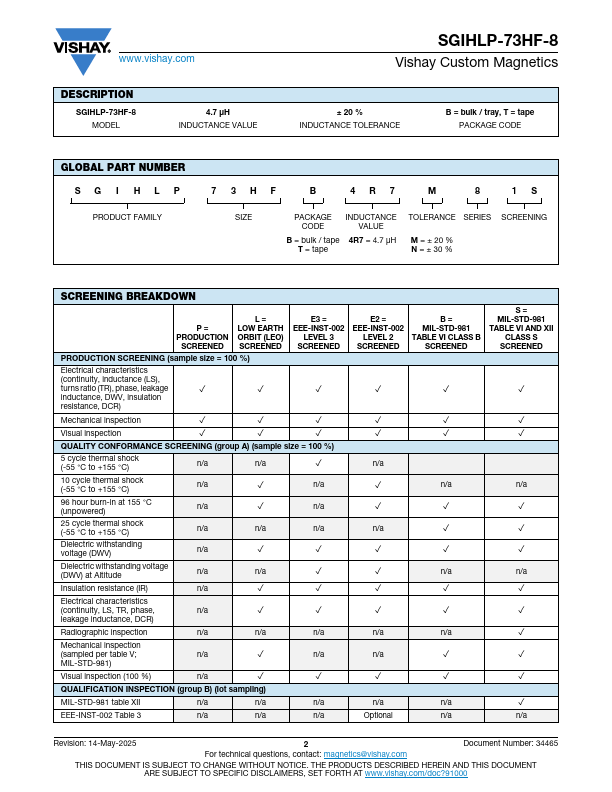

SGIHLP-73HF-8 MODEL 4.7 μH INDUCTANCE VALUE SGIHLP-73HF-8 Vishay Custom Magnetics ± 20 % INDUCTANCE TOLERANCE B = bulk / tray, T = tape PACKAGE CODE GLOBAL PART NUMBER SG I HLP PRODUCT FAMILY 7 3HF B 4R7 M 8 1S SIZE PACKAGE INDUCTANCE CODE VALUE B = bulk / tape 4R7 = 4.7 μH T = tape TOLERANCE SERIES SCREENING M = ± 20 % N = ± 30 % SCREENING BREAKDOWN P= PRODUCTION SCREENED L= LOW EARTH ORBIT (LEO) SCREENED E3 = EEE-INST-002 LEVEL 3 SCREENED E2 = EEE-INST-002 LEVEL 2 SCREENE

Features

MIL-STD-981 class S compliant (see “Screening Codes”).
High temperature rating, up to 180 °C.
Shielded construction.
Lowest DCR/μH, in this package size.
Handles high transient current spikes without saturation.
Low profile package with high current saturation levels LINKS TO.
