SFR25H, SFR16S - Standard Metal Film Leaded Resistors

Vishay

📥 Download Datasheet

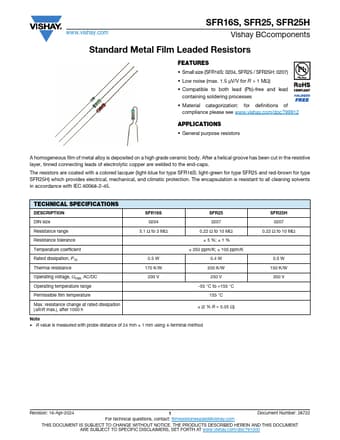

SFR25H Datasheet Preview — This datasheet PDF includes multiple part numbers: SFR25H, SFR16S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SFR25H, SFR16S
Manufacturer	Vishay
File Size	134.16 KB
Description	Standard Metal Film Leaded Resistors
Datasheet	SFR16S-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SFR25H, SFR16S. Please refer to the document for exact specifications by model.

SFR25H Product details

Description

SFR16S SFR25 DIN size 0204 0207 Resistance range 5.1 Ω to 3 MΩ 0.22 Ω to 10 MΩ Resistance tolerance ± 5 %; ± 1 % Temperature coefficient ± 250 ppm/K; ± 100 ppm/K Rated dissipation, P70 Thermal resistance 0.5 W 170 K/W 0.4 W 200 K/W Operating voltage, Umax.AC/DC Operating temperature range 200 V 250 V -55 °C to +155 °C Permissible film temperature 155 °C Max.resistance change at rated dissipation |ΔR/R max.|, after 1000 h ± (2 % R + 0.05 Ω) Note R value is measu

Features

Small size (SFR16S: 0204, SFR25 / SFR25H: 0207).
Low noise (max. 1.5 μV/V for R > 1 MΩ).
Compatible to both lead (Pb)-free and lead containing soldering processes.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
