SFH6325 - Dual Channel High Speed Optocoupler

Vishay

The SFH6325 by Vishay is a Dual Channel High Speed Optocoupler. Below is the official datasheet preview.

📥 Download Datasheet

SFH6325 Dual Channel High Speed Optocoupler by Vishay - Datasheet Preview — Official preview page of the **SFH6325** Dual Channel High Speed Optocoupler datasheet (Vishay).

Datasheet Details

Part number	SFH6325
Manufacturer	Vishay
File Size	187.66 KB
Description	Dual Channel High Speed Optocoupler
Datasheet	SFH6325-Vishay.pdf

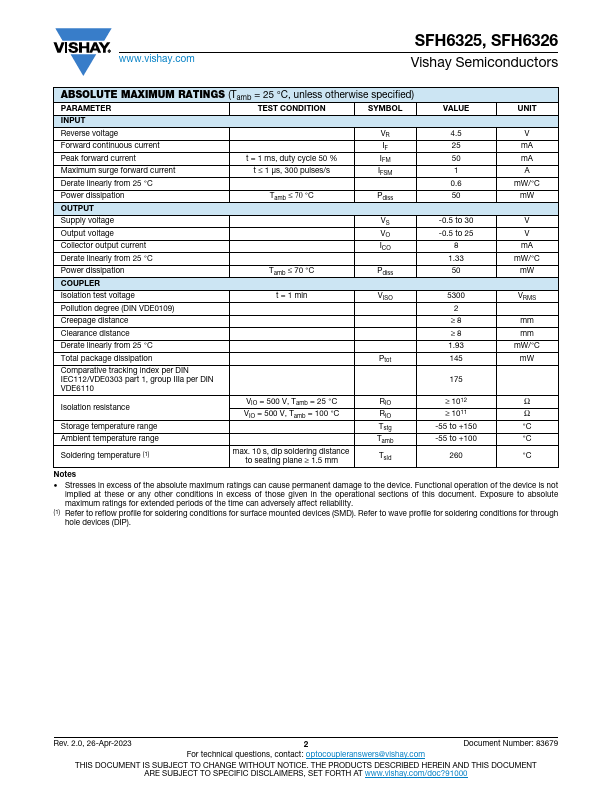

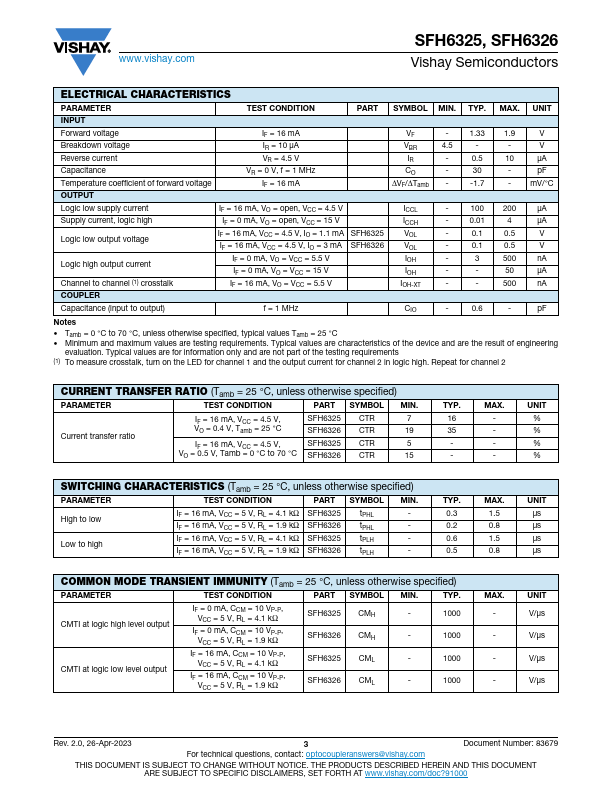

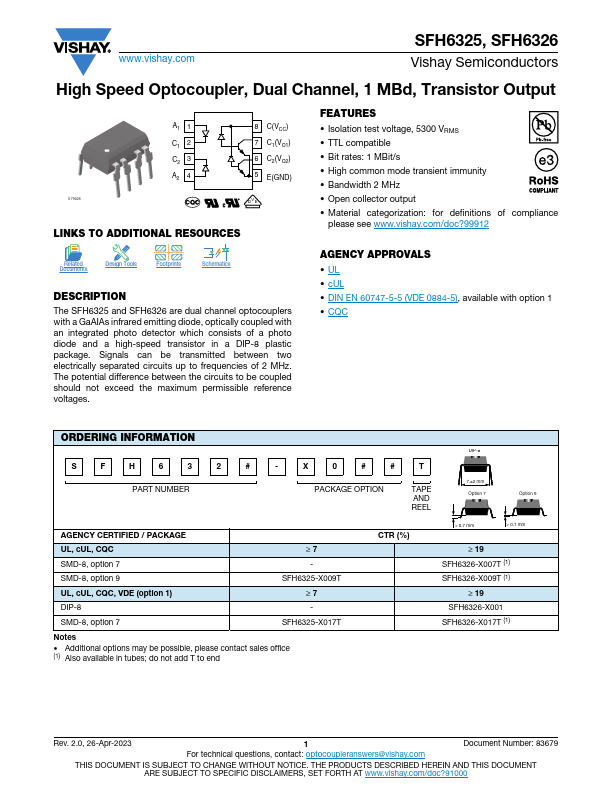

Additional preview pages of the SFH6325 datasheet.

SFH6325 Product details

Description

The SFH6325 and SFH6326 are dual channel optocouplers with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP-8 plastic package.

Features

Isolation test voltage, 5300 VRMS.
TTL compatible.
Bit rates: 1 MBit/s.
High common mode transient immunity.
Bandwidth 2 MHz.
Open collector output.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 AGENCY.
