SFH615AGB, SFH615AA - Optocoupler

Vishay

Datasheet Details

Part number	SFH615AGB, SFH615AA
Manufacturer	Vishay
File Size	116.90 KB
Description	Optocoupler

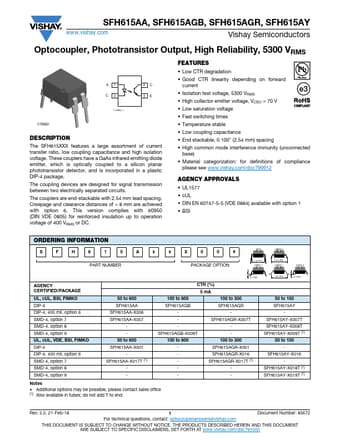

Datasheet	SFH615AA-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SFH615AGB, SFH615AA. Please refer to the document for exact specifications by model.

The SFH615XXX

a large assortment of current transfer ratio, low coupling capacitance and high isolation voltage. These couplers have a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling devices are designed for signal transmission between two electrically separated circuits. The couplers are end-stackable with 2.54 mm lead spacing. Creepage and clearance distances of > 8 mm are achieved wit.
