SFH601-4, SFH601 - Optocoupler

Name: SFH601-4
SKU: SFH601-4-1485658

Vishay

📥 Download Datasheet

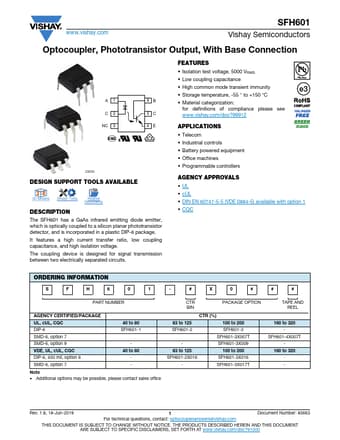

SFH601-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFH601-4, SFH601. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SFH601-4, SFH601
Manufacturer	Vishay
File Size	227.73 KB
Description	Optocoupler
Datasheet	SFH601-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SFH601-4, SFH601. Please refer to the document for exact specifications by model.

SFH601-4 Product details

Description

The SFH601 has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-6 package.

Features

a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits.
