SFH600-2X006, SFH600 - Optocoupler

Vishay

📥 Download Datasheet

SFH600-2X006 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFH600-2X006, SFH600. Please refer to the document for exact specifications by model.

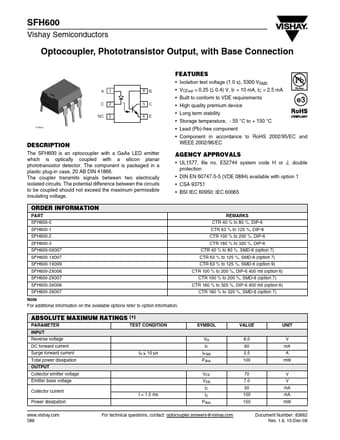

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SFH600-2X006, SFH600
Manufacturer	Vishay
File Size	159.50 KB
Description	Optocoupler
Datasheet	SFH600-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SFH600-2X006, SFH600. Please refer to the document for exact specifications by model.

SFH600-2X006 Product details

Description

The SFH600 is an optocoupler with a GaAs LED emitter which is optically coupled with a silicon planar phototransistor detector.

Features

Isolation test voltage (1.0 s), 5300 VRMS.
VCEsat = 0.25 (≤ 0.4) V, IF = 10 mA, IC = 2.5 mA.
Built to conform to VDE requirements.
High quality premium device.
Long term stability.
Storage temperature, - 55 °C to + 150 °C.
Lead (Pb)-free component.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC AGENCY.
