SFH1690AT - GaAs infrared emitting diode emitter

Vishay

The SFH1690AT by Vishay is a GaAs infrared emitting diode emitter. Below is the official datasheet preview.

📥 Download Datasheet

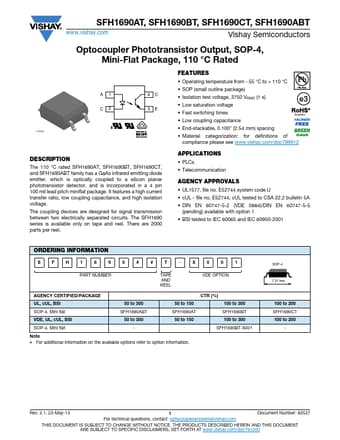

SFH1690AT GaAs infrared emitting diode emitter by Vishay - Datasheet Preview — Official preview page of the **SFH1690AT** GaAs infrared emitting diode emitter datasheet (Vishay).

Datasheet Details

Part number	SFH1690AT
Manufacturer	Vishay
File Size	129.73 KB
Description	GaAs infrared emitting diode emitter
Datasheet	SFH1690AT-Vishay.pdf
Additional preview pages of the SFH1690AT datasheet.

SFH1690AT Product details

Description

The 110 °C rated SFH1690AT, SFH1690BT, SFH1690CT, and SFH1690ABT family has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch miniflat package.

Features

a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling devices are designed for signal transmission between two electrically separated circuits. The SFH1690 series is available only on tape and reel. There are 2000 parts per reel.
