SD103CWS-G, SD103AWS-G Small Signal Schottky Diodes

SD103CWS-G Description

www.vishay.com SD103AWS-G, SD103BWS-G, SD103CWS-G Vishay Semiconductors Small Signal Schottky Diodes MECHANICAL DATA Case: SOD-323 Weight: approx..

SD103CWS-G Features

* The SD103 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring
* The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing, and coupling diodes for fast switching and low logic level

SD103CWS-G Applications

* Other applications are click suppression, efficient full wave bridges in telephone subsets, and blocking diodes in rechargeable low voltage battery systems
* For general purpose applications
* AEC-Q101 qualified available
* Base P/N-G3 - green, commercial grade

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD103CWS-G, SD103AWS-G. Please refer to the document for exact specifications by model.

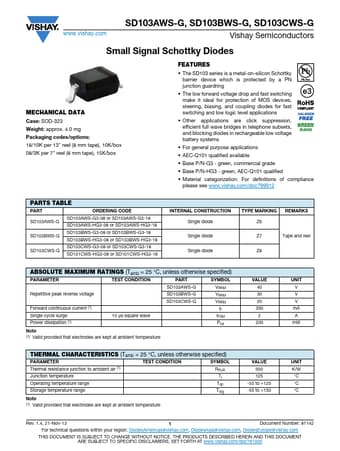

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD103CWS-G, SD103AWS-G
Manufacturer
Vishay ↗
File Size
73.78 KB
Datasheet
SD103AWS-G-Vishay.pdf
Description
Small Signal Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: SD103CWS-G, SD103AWS-G.
Please refer to the document for exact specifications by model.
