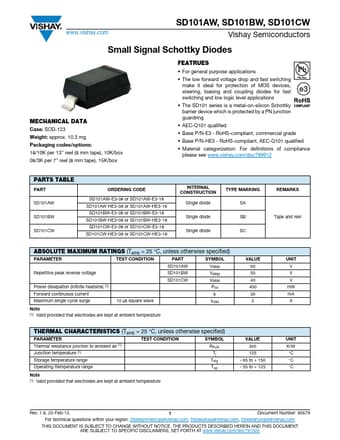

SD101AW, SD101BW, SD101CW
Vishay Semiconductors
Small Signal Schottky Diodes
MECHANICAL DATA Case: SOD-123 Weight: approx. 10.3 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box
FEATRUES
• For general purpose applications
• The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications
• The SD101 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guardring
• AEC-Q101 qualified
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
• Material categorization: For definitions of compliance please see www.vishay.
SD101CW Datasheet
