RGP15D, RGP15A Glass Passivated Junction Fast Switching Plastic Rectifier

Vishay

Description

Not for New Designs RGP15A, RGP15B, RGP15D, RGP15G, RGP15J, RGP15K, RGP15M www.vishay.com Vishay General Semiconductor Glass Passivated Junction F.

📥 Download Datasheet

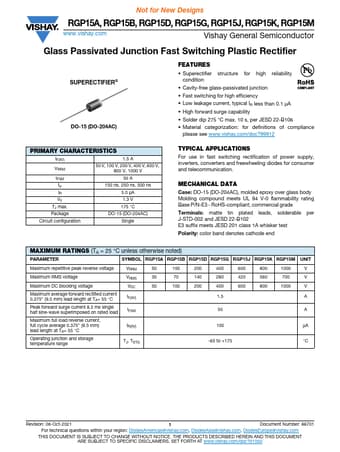

RGP15D Datasheet Preview — This datasheet PDF includes multiple part numbers: RGP15D, RGP15A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RGP15D, RGP15A
Manufacturer: Vishay ↗
File Size: 69.31 KB
Datasheet: RGP15A-Vishay.pdf
Description: Glass Passivated Junction Fast Switching Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: RGP15D, RGP15A.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Fast switching for high efficiency
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s, per

Applications

* For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication. MECHANICAL DATA Case: DO-15 (DO-204AC), molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercia
