RGF1D, RGF1A - Surface-Mount Glass Passivated Junction Fast Switching Rectifier

Name: RGF1D
SKU: RGF1D-1592250

Vishay

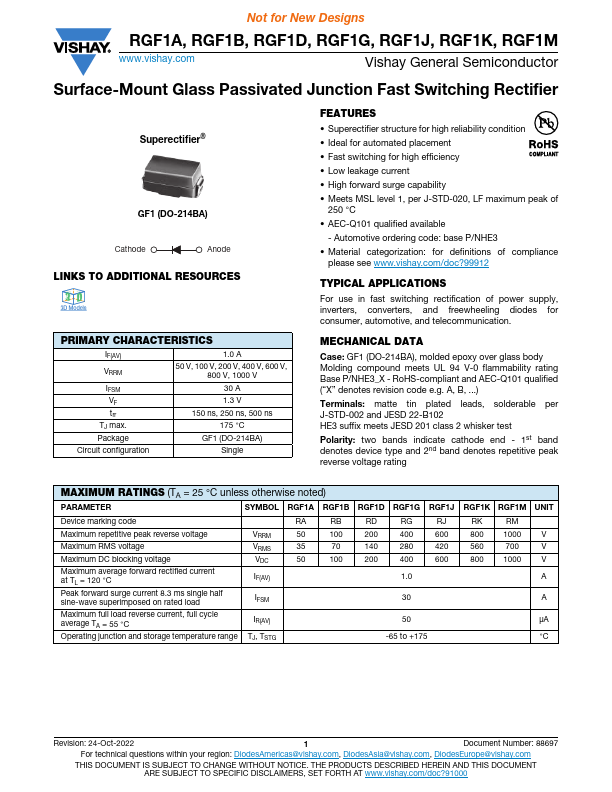

The RGF1D by Vishay is a Surface-Mount Glass Passivated Junction Fast Switching Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	RGF1D, RGF1A
Manufacturer	Vishay
File Size	85.89 KB
Description	Surface-Mount Glass Passivated Junction Fast Switching Rectifier
Datasheet	RGF1A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RGF1D, RGF1A. Please refer to the document for exact specifications by model.

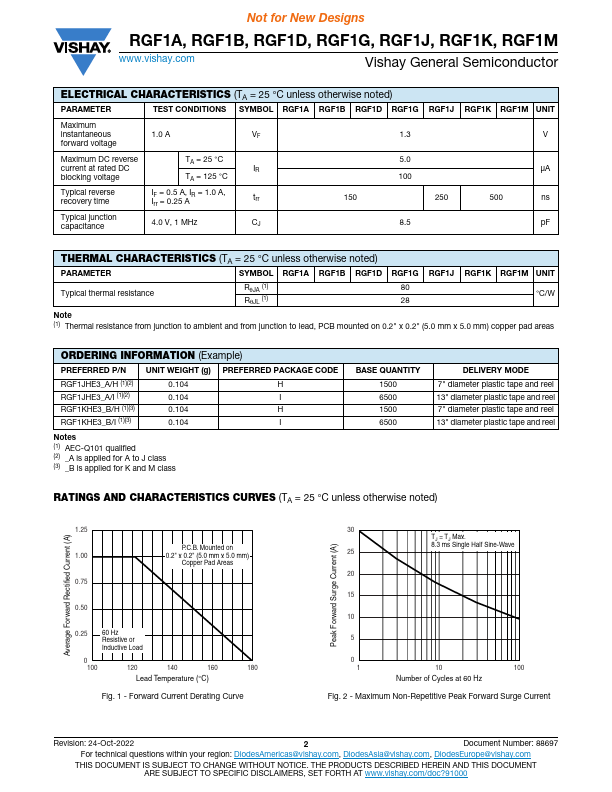

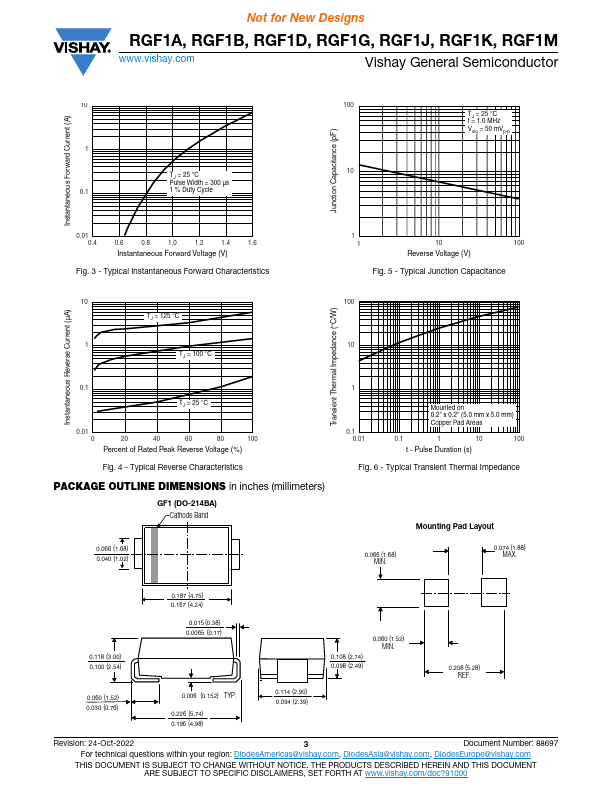

Additional preview pages of the RGF1D datasheet.

Superectifier structure for high reliability condition.
Ideal for automated placement.
Fast switching for high efficiency.
Low leakage current.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
