RCWPM-575, RCWPM - Thick Film Chip Resistors

Vishay

📥 Download Datasheet

RCWPM-575 Datasheet Preview — This datasheet PDF includes multiple part numbers: RCWPM-575, RCWPM. Please refer to the document for exact specifications by model.

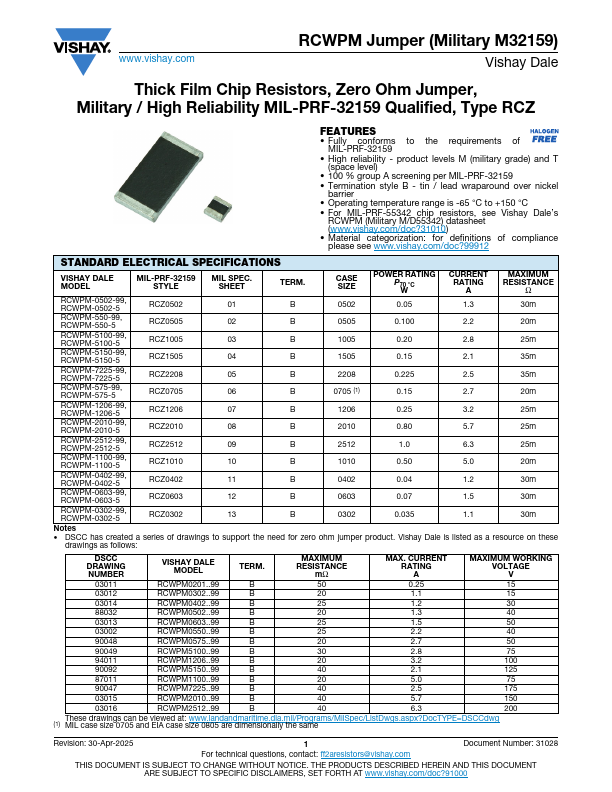

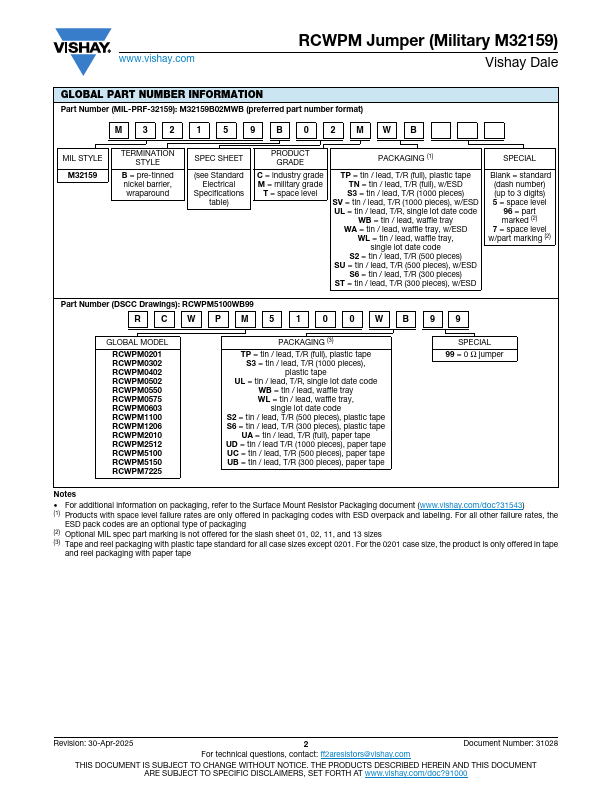

datasheet Preview Page 2

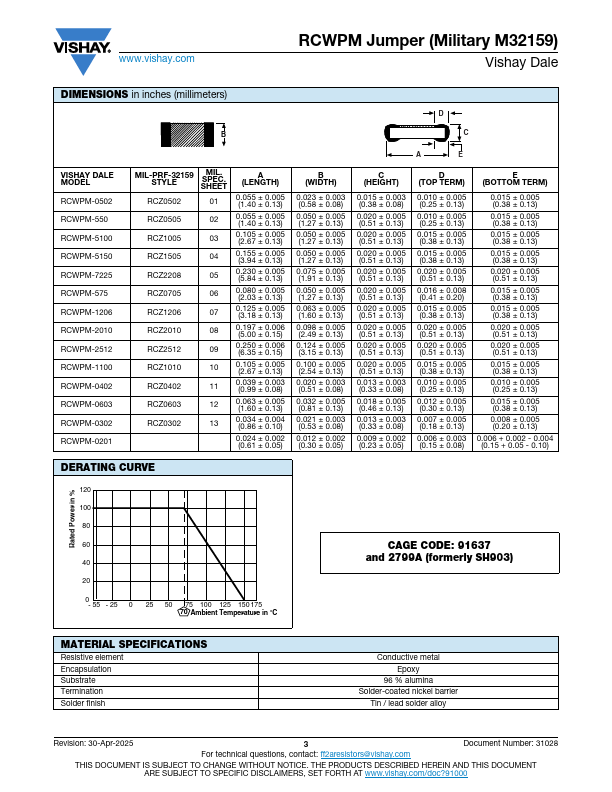

datasheet Preview Page 3

Datasheet Details

Part number: RCWPM-575, RCWPM
Manufacturer: Vishay ↗
File Size: 82.43 KB
Datasheet: RCWPM-Vishay.pdf
Description: Thick Film Chip Resistors
Note: This datasheet PDF includes multiple part numbers: RCWPM-575, RCWPM.
Please refer to the document for exact specifications by model.

RCWPM-575 Product details

Features

Fully conforms to the requirements of MIL-PRF-32159.
High reliability - product levels M (military grade) and T (space level).
100 % group A screening per MIL-PRF-32159.
Termination style B - tin / lead wraparound over nickel barrier.
Operating temperature range is -65 °C to +150 °C.
For MIL-PRF-55342 chip resistors, see Vishay Dale’s.
