PTV30B - Surface Mount Power Voltage-Regulating Diodes

Download the PTV30B datasheet PDF. This datasheet also covers the PTV3.9B variant, as both devices belong to the same surface mount power voltage-regulating diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Very low profile - typical height of 1.0 mm.
  • Ideal for automated placement.
  • Low Zener impedance.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
  • Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PTV3.9B-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PTV30B
Manufacturer Vishay
File Size 82.05 KB
Description Surface Mount Power Voltage-Regulating Diodes
Datasheet download datasheet PTV30B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PTV03010 DC-DC CONVERTERS Artesyn
PTV03010W 3.3-V INPUT NONISOLATED WIDE-OUTPUT ADJUST SIP MODULE Texas Instruments
PTV03020W 3.3-V INPUT NONISOLATED WIDE-OUTPUT ADJUST SIP MODULE Texas Instruments
PTV03020WAD DC-DC / Non-Isolated POLA Emerson
PTV03020WAH DC-DC / Non-Isolated POLA Emerson

Other Datasheets by Vishay

Part Number Description
PTV3.9B Surface Mount Power Voltage-Regulating Diodes
PTV33B Surface Mount Power Voltage-Regulating Diodes
PTV36B Surface Mount Power Voltage-Regulating Diodes
PTV10B Surface Mount Power Voltage-Regulating Diodes
PTV11B Surface Mount Power Voltage-Regulating Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

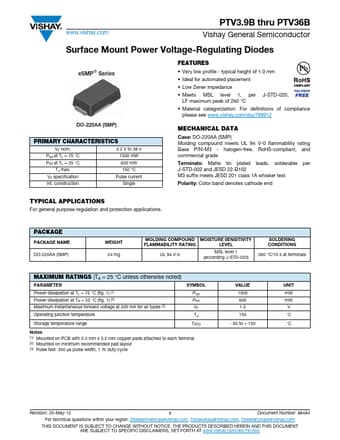

www.vishay.com PTV3.9B thru PTV36B Vishay General Semiconductor Surface Mount Power Voltage-Regulating Diodes eSMP® Series DO-220AA (SMP) PRIMARY CHARACTERISTICS VZ nom. Ptot at TL = 75 °C Ptot at TL = 25 °C TJ max. VZ specification Int. construction 4.2 V to 38 V 1500 mW 600 mW 150 °C Pulse current Single FEATURES • Very low profile - typical height of 1.0 mm • Ideal for automated placement • Low Zener impedance • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Material categorization: For definitions of compliance please see www.vishay.
