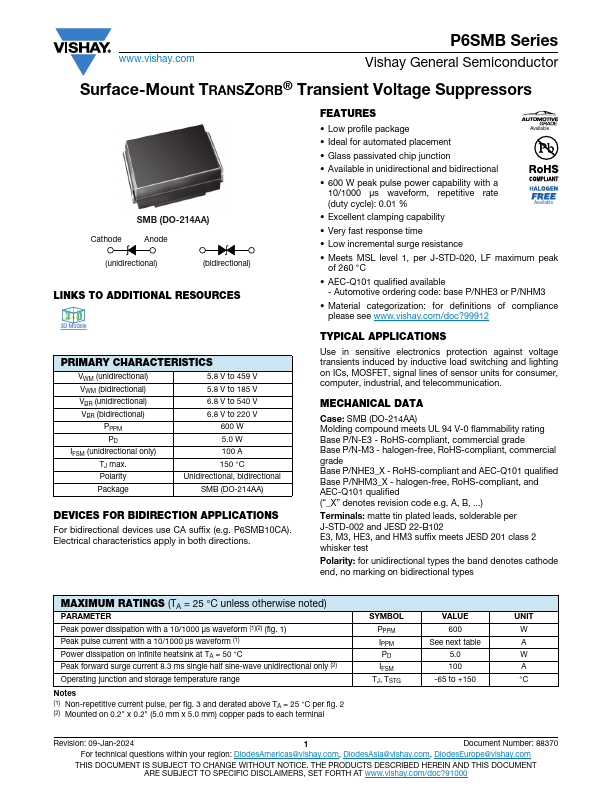

P6SMB36A, P6SMB6.8A - Transient Voltage Suppressors

Vishay

Datasheet Details

Part number	P6SMB36A, P6SMB6.8A
Manufacturer	Vishay ↗
File Size	124.39 KB
Description	Transient Voltage Suppressors
Datasheet	P6SMB6.8A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: P6SMB36A, P6SMB6.8A. Please refer to the document for exact specifications by model.

Low profile package Available.
Ideal for automated placement.
Glass passivated chip junction.
Available in unidirectional and bidirectional.
600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % Available.
Excellent clamping capability.
Very fast response time.
Low incremental surge resistance.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
