P6SMB160A - Transient Voltage Suppressors

Download the P6SMB160A datasheet PDF. This datasheet also covers the P6SMB6.8A variant, as both devices belong to the same transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low profile package Available.
  • Ideal for automated placement.
  • Glass passivated chip junction.
  • Available in unidirectional and bidirectional.
  • 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % Available.
  • Excellent clamping capability.
  • Very fast response time.
  • Low incremental surge resistance.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P6SMB6.8A-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P6SMB160A
Manufacturer Vishay
File Size 124.39 KB
Description Transient Voltage Suppressors
Datasheet download datasheet P6SMB160A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P6SMB160A Surface Mount Transient Voltage Suppressors SOCAY
P6SMB160A Surface Mount Transient Voltage Suppressors ANOVA
P6SMB160A 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR WON-TOP
P6SMB160A TRANSIENT VOLTAGE SUPPRESSORS Central Semiconductor
P6SMB160A Surface Mount Transient Voltage Suppressor Taiwan Semiconductor

Other Datasheets by Vishay

Part Number Description
P6SMB16A Transient Voltage Suppressors
P6SMB100A Transient Voltage Suppressors
P6SMB10A Transient Voltage Suppressors
P6SMB110A Transient Voltage Suppressors
P6SMB11A Transient Voltage Suppressors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

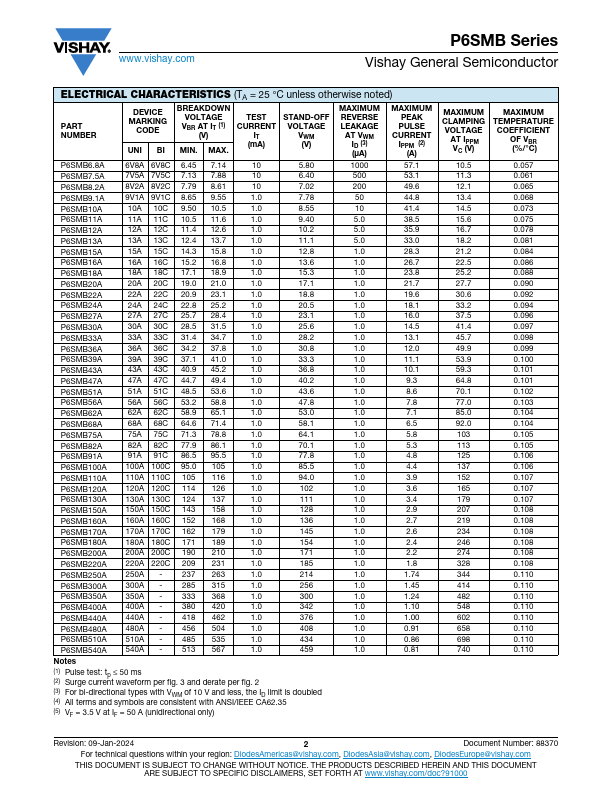

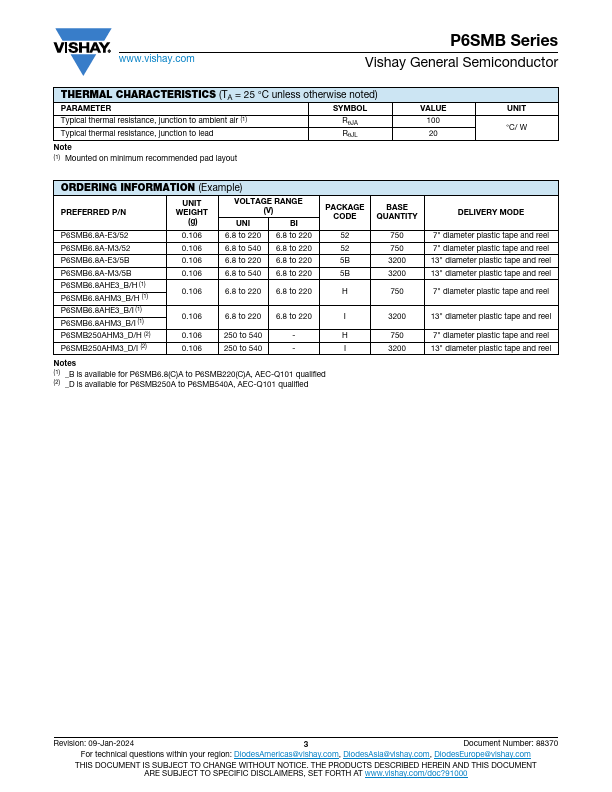

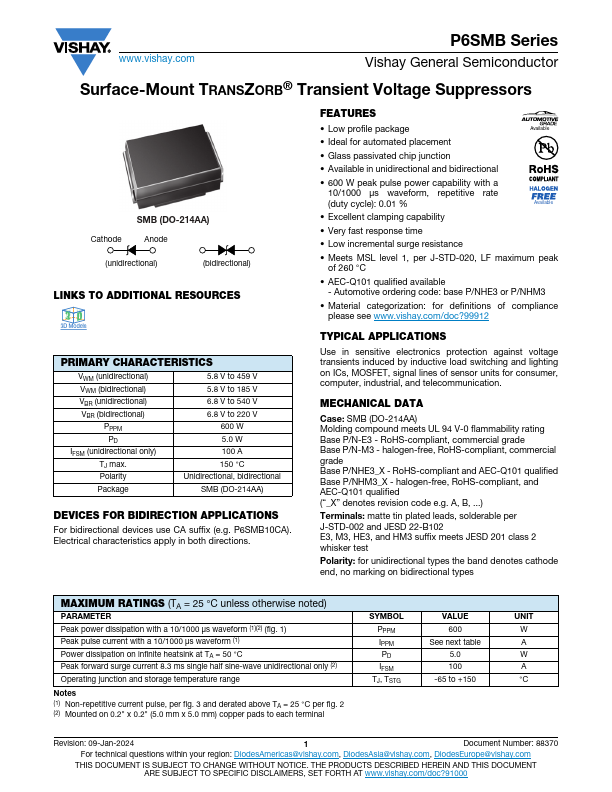

www.vishay.com P6SMB Series Vishay General Semiconductor Surface-Mount TRANSZORB® Transient Voltage Suppressors Cathode SMB (DO-214AA) Anode (unidirectional) (bidirectional) LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VWM (unidirectional) VWM (bidirectional) VBR (unidirectional) VBR (bidirectional) PPPM PD IFSM (unidirectional only) TJ max. Polarity 5.8 V to 459 V 5.8 V to 185 V 6.8 V to 540 V 6.8 V to 220 V 600 W 5.0 W 100 A 150 °C Unidirectional, bidirectional Package SMB (DO-214AA) DEVICES FOR BIDIRECTION APPLICATIONS For bidirectional devices use CA suffix (e.g. P6SMB10CA). Electrical characteristics apply in both directions.
