MS18130 Inductors

- MILITARY PART NUMBER MS75084 MILITARY STANDARD - 12 INDUCTANCE VALUE OR LT TYPE 10 GRADE AND CLASS K FAMILY 072 ID NUMBER GLOBAL PART NUMBER INFORMATION MS 7 5 0 4 8 MODEL - 12 INDUCTANCE VALU.

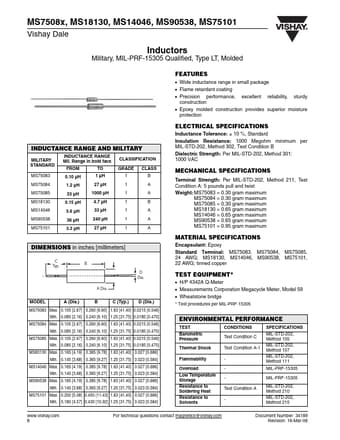

MS7508x, MS18130, MS14046, MS90538, MS75101 Vishay Dale Inductors Military, MIL-PRF-15305 Qualified, Type LT, Molded INDUCTANCE RANGE AND MILITARY MILITARY STANDARD INDUCTANCE RANGE Mil. Range in bold face FROM TO CLASSIFICATION GRADE CLASS MS75083 0.10 µH 1 µH 1 B MS75084 1.2 µH 27 µH 1 A MS75085 33 µH 1000 µH 1 A MS18130 0.15 µH 4.7 µH 1 B MS14046 5.6 µH 33 µH 1 A MS90538 36 µH 240 µH 1 A MS75101 3.3 µH 27 µH 1 A DIMENSIONS in inches [millimeters] C T.

MS18130 Features

* Wide inductance range in small package

* Flame retardant coating

* Precision performance, excellent reliability, sturdy construction

* Epoxy molded construction provides superior moisture protection ELECTRICAL SPECIFICATIONS Inductance Tolerance: ± 10 %, Standard In
