MMSZ5259-V - Small Signal Zener Diodes

Product Overview

Vishay

Part number	MMSZ5259-V
Manufacturer	Vishay
File Size	75.27 KB
Description	Small Signal Zener Diodes
Datasheet	MMSZ5259-V Datasheet
Note	This datasheet PDF includes multiple part numbers: MMSZ5259-V, MMSZ5225-V. Please refer to the document for exact specifications by model.

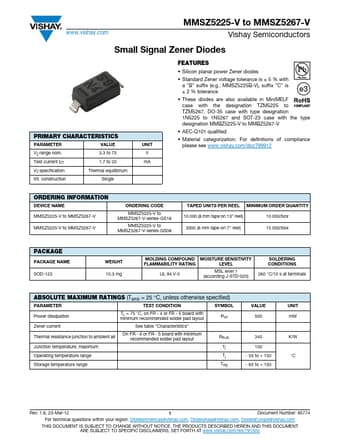

Additional preview pages of the MMSZ5259-V datasheet.

Silicon planar power Zener diodes.
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMSZ5225B-V), suffix “C” is ± 2 % tolerance.
These diodes are also available in MiniMELF case with the designation TZM5225 to TZM5267, DO-35 case with type designation 1N5225 to 1N5267 and SOT-23 case with the type designation MMBZ5225-V to MMBZ5267-V.
AEC-Q101 qualified.
Material categorization: For definitions of compliance please see www. vishay. co.
