MMBZ5260 - Small Signal Zener Diodes

Download the MMBZ5260 datasheet PDF. This datasheet also covers the MMBZ5225 variant, as both devices belong to the same small signal zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Silicon planar power Zener diodes Available.
  • Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMBZ5225B), suffix “C” is ± 2 % tolerance.
  • High temperature soldering guaranteed:  260 °C/4 x 10 s at terminals.
  • AEC-Q101 qualified available.
  • ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
  • Base P/N-E3 - RoHS-compliant, commercial grade.
  • Base P/N-HE3 - RoHS-compliant, AEC-Q.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMBZ5225-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MMBZ5260
Manufacturer Vishay
File Size 86.04 KB
Description Small Signal Zener Diodes
Datasheet download datasheet MMBZ5260 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBZ5260 ZENER DIODES General
MMBZ5260B SILICON PLANAR ZENER DIODES SEMTECH
MMBZ5260B SILICON PLANAR ZENER DIODES CUMSUMI
MMBZ5260B 350mW SURFACE MOUNT ZENER DIODE WON-TOP
MMBZ5260B Zener diode Excel Semiconductor

Other Datasheets by Vishay

Part Number Description
MMBZ5260-G Small Signal Zener Diodes
MMBZ5260-V Small Signal Zener Diodes
MMBZ5260-V-G Small Signal Zener Diodes
MMBZ5261 Small Signal Zener Diodes
MMBZ5261-G Small Signal Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

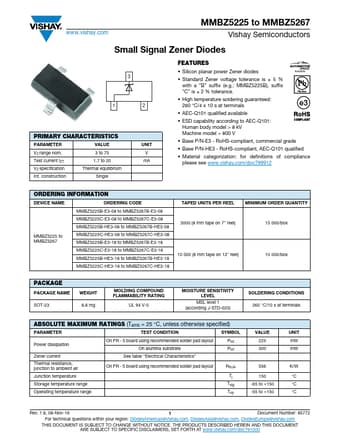

www.vishay.com MMBZ5225 to MMBZ5267 Vishay Semiconductors Small Signal Zener Diodes 3 12 PRIMARY CHARACTERISTICS PARAMETER VALUE VZ range nom. Test current IZT VZ specification Int. construction 3 to 75 1.7 to 20 Thermal equilibrium Single UNIT V mA FEATURES • Silicon planar power Zener diodes Available • Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e.g.: MMBZ5225B), suffix “C” is ± 2 % tolerance. • High temperature soldering guaranteed:  260 °C/4 x 10 s at terminals • AEC-Q101 qualified available • ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: for definitions of compliance please see www.
