MMBZ5253 - Small Signal Zener Diodes

Product Overview

Vishay

📥 Download Datasheet

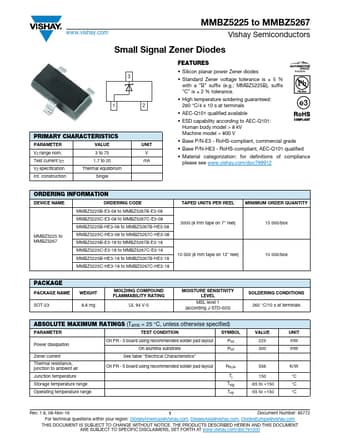

MMBZ5253 Small Signal Zener Diodes by Vishay - Datasheet Preview — Datasheet preview – MMBZ5253

Datasheet Details

Part number	MMBZ5253
Manufacturer	Vishay
File Size	86.04 KB
Description	Small Signal Zener Diodes
Datasheet	MMBZ5253 Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBZ5253, MMBZ5225. Please refer to the document for exact specifications by model.
Additional preview pages of the MMBZ5253 datasheet.

Product details

Features

Silicon planar power Zener diodes Available.
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMBZ5225B), suffix “C” is ± 2 % tolerance.
High temperature soldering guaranteed:  260 °C/4 x 10 s at terminals.
AEC-Q101 qualified available.
ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3 - RoHS-compliant, AEC-Q.
