MMBZ5243-V - Small Signal Zener Diodes

Product Overview

Vishay

📥 Download Datasheet

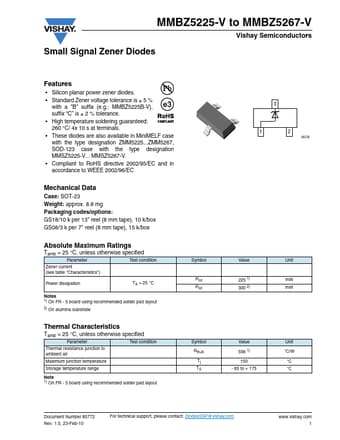

MMBZ5243-V Small Signal Zener Diodes by Vishay - Datasheet Preview — Datasheet preview – MMBZ5243-V

Datasheet Details

Part number	MMBZ5243-V
Manufacturer	Vishay
File Size	75.94 KB
Description	Small Signal Zener Diodes
Datasheet	MMBZ5243-V Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBZ5243-V, MMBZ5225-V. Please refer to the document for exact specifications by model.
Additional preview pages of the MMBZ5243-V datasheet.

Product details

Features

Silicon planar power zener diodes.
Standard Zener voltage tolerance is ± 5 % with a "B" suffix (e. g. : MMBZ5225B-V), suffix “C” is ± 2 % tolerance.
High temperature soldering guaranteed: 260 °C/ 4x 10 s at terminals.
These diodes are also available in MiniMELF case with the type designation ZMM5225ZMM5267, SOD-123 case with the type designation MMSZ5225-V MMSZ5267-V.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Mech.
