MCT0603 - Professional Thin Film Chip Resistors

Vishay

The MCT0603 by Vishay is a Professional Thin Film Chip Resistors. Below is the official datasheet preview.

📥 Download Datasheet

MCT0603 Professional Thin Film Chip Resistors by Vishay - Datasheet Preview — Official preview page of the **MCT0603** Professional Thin Film Chip Resistors datasheet (Vishay).

Datasheet Details

Part number	MCT0603
Manufacturer	Vishay
File Size	160.17 KB
Description	Professional Thin Film Chip Resistors
Datasheet	MCT0603-Vishay.pdf

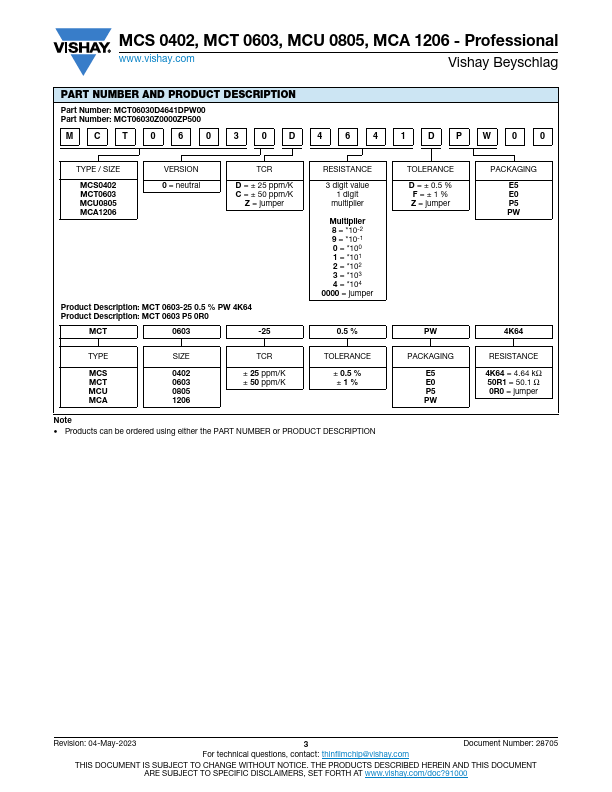

Additional preview pages of the MCT0603 datasheet.

MCT0603 Product details

Description

MCS 0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 1 MΩ; 0 Ω Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS/DC Permissible film temperature, ϑF max.(1) Operating temperature range 0.100 W 50 V Internal thermal resistance (1) 90 K/W Permissible voltage against ambient (insulation): Failure rate: FITobserved 1 min; Uins 75 V Note (1) Please refer to APPLICATION INFORMATION below MCT 0603 MCU 080

Features

IECQ-CECC approved to EN 140401-801.
Excellent overall stability: class 0.5.
Professional tolerance of resistance: ± 0.5 % and ± 1 %.
Rated dissipation P70 up to 0.4 W for size 1206.
Sulfur resistance verified according to ASTM B 809.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
