MC7812CT - (MC78xxCT) 3-Terminal Fixed Positive Voltage Regulator

Name: MC7812CT
SKU: MC7812CT-540243

Vishay

📥 Download Datasheet

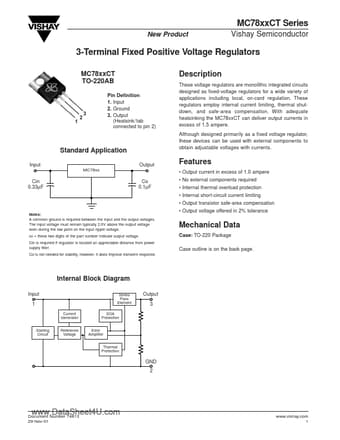

MC7812CT Datasheet Preview — Preview of MC7812CT PDF

Datasheet Details

Part number	MC7812CT
Manufacturer	Vishay
File Size	110.48 KB
Description	(MC78xxCT) 3-Terminal Fixed Positive Voltage Regulator
Datasheet	MC7812CT_Vishay.pdf

MC7812CT Product details

Description

These voltage regulators are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation.

Features

Output current in excess of 1.0 ampere.
No external components required.
Internal thermal overload protection.
Internal short-circuit current limiting.
Output transistor safe-area compensation.
Output voltage offered in 2% tolerance Cin 0.33µF Co 0.1µF Notes: A common ground is required between the input and the output voltages. The input voltage must remain typically 2.0V above the output voltage even during the low point on the input ri.
