MBRF2060CT, MBRB2045CT - Dual Common Cathode Schottky Rectifier

Name: MBRF2060CT
SKU: MBRF2060CT-1535924

Vishay

The MBRF2060CT by Vishay is a Dual Common Cathode Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF2060CT, MBRB2045CT
Manufacturer	Vishay
File Size	99.13 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBRB2045CT-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF2060CT, MBRB2045CT. Please refer to the document for exact specifications by model.

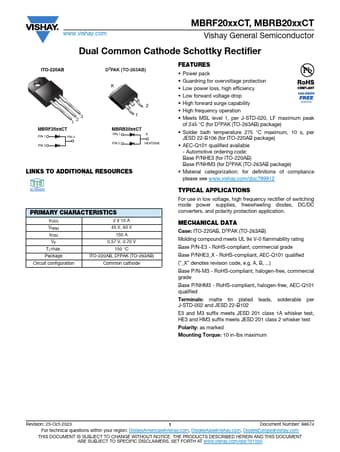

Additional preview pages of the MBRF2060CT datasheet.

Power pack.
Guardring for overvoltage protection.
Low power loss, high efficiency.
Low forward voltage drop.
High forward surge capability.
High frequency operation Available.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for D2PAK (TO-263AB) package).
Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for ITO-220AB package).
AEC-Q101 qualified available - Automotive ordering code:.
