MBR2090CTPbF, MBR2080CTPbF - Schottky Rectifier

Name: MBR2090CTPbF
SKU: MBR2090CTPbF-1144010

Vishay

The MBR2090CTPbF by Vishay is a Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR2090CTPbF, MBR2080CTPbF
Manufacturer	Vishay
File Size	153.22 KB
Description	Schottky Rectifier
Datasheet	MBR2080CTPbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MBR2090CTPbF, MBR2080CTPbF. Please refer to the document for exact specifications by model.

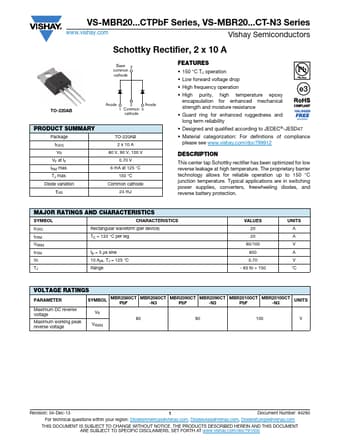

Additional preview pages of the MBR2090CTPbF datasheet.

This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

150 °C TJ operation.
Low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability Available.
Designed and qualified according to JEDEC®-JESD47.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
